Alternative Rear Light Clusters

Have you documented a Scimitar related procedure and would like to share it with others? Pictures are most welcome!
Threads here also contain previous “stickies” from other sections, as a central location for quick reference information.

Moderators: scimjim, Lukeyboy46, Roger Pennington, philhoward, erikscimitardemon

User avatar
guardsbrigade
Posts: 627
Joined: Tue Feb 03, 2009 10:21 am
Location: South Glos
Been thanked: 1 time

Post by guardsbrigade » Thu Apr 30, 2009 5:08 pm

As Steve says Phil,i don't think it would be an issue on 5's,5a's and 6a's.They predate all the Euro nonsense.Maybe the later 6b and and GTC's might fall under it?.I would think the new lights would be marked as a matter of course these days..



User avatar
Corky
RSSOC Member
Posts: 11229
Joined: Sun Sep 24, 2006 5:02 am
Location: Macclesfield
Has thanked: 255 times
Been thanked: 212 times

Post by Corky » Thu Apr 30, 2009 7:36 pm

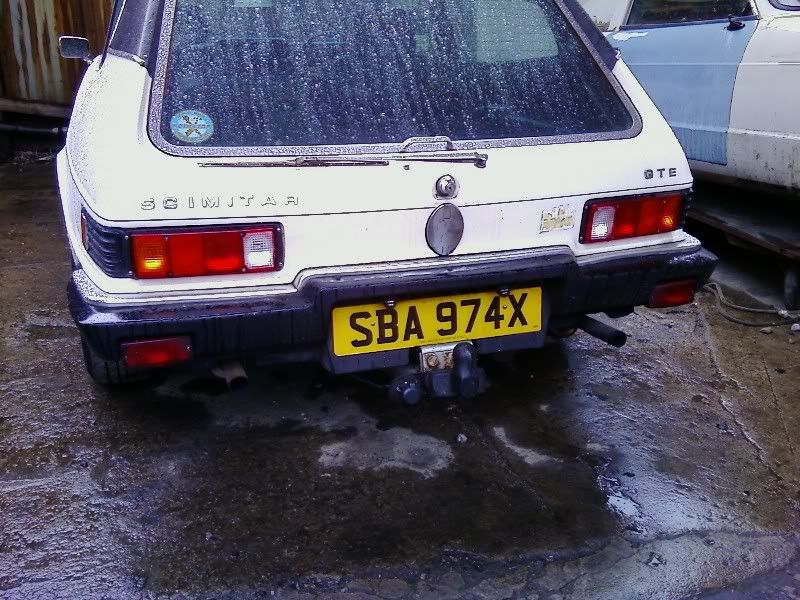

Ok guys here are the pictures you've been waiting for :-



The lights do have some official conformity markings, but I couldn't see what they were, and it was raining.......

Cheers

Steve


Steve
Current:- SS1 Ti RG sprint car, Honda S2000, VW Touareg 3.0 V6
Prev:- Sabre Ti, 3xSS1 Ti, SS1 16v Turbo Racer, 5XGTC, 2XSE6B, 2XSE5A, 2XV6 Coupe, Sabre 6
Project Threads & YouTube

“It's not the winning, it's the taking apart that counts"

User avatar
philhoward
RSSOC Member
Posts: 25235
Joined: Tue Aug 29, 2006 5:41 pm
Location: Staffs, UK
Has thanked: 64 times
Been thanked: 630 times
Contact:

Post by philhoward » Thu Apr 30, 2009 7:42 pm

Thats an amazingly good fit and IMHO look pretty good. I'd be straight onto ebay if I still had a GTE!


Phil Howard
Scimitarweb Forum Admin
SS1 1600 Rooster Turbo; Sabre Mk1.5, Sabre Mk2
Previous: SE5/5a/SS1 No.1/SS1 Rooster/SS1 1800Ti/SE5a 24 Valve
http://www.ss1turbo.com
Never try and argue with an idiot. They drag you down to their level, then beat you based on experience.

User avatar
Corky
RSSOC Member
Posts: 11229
Joined: Sun Sep 24, 2006 5:02 am
Location: Macclesfield
Has thanked: 255 times
Been thanked: 212 times

Post by Corky » Thu Apr 30, 2009 7:54 pm

I had a full demonstration and they are pretty bright too. Better than the standard unit.


Steve
Current:- SS1 Ti RG sprint car, Honda S2000, VW Touareg 3.0 V6
Prev:- Sabre Ti, 3xSS1 Ti, SS1 16v Turbo Racer, 5XGTC, 2XSE6B, 2XSE5A, 2XV6 Coupe, Sabre 6
Project Threads & YouTube

“It's not the winning, it's the taking apart that counts"

User avatar
Gemini Bob
RIP
Posts: 6462
Joined: Sun Feb 10, 2008 7:01 pm
Location: Barnsley
Has thanked: 7 times
Been thanked: 19 times

Post by Gemini Bob » Thu Apr 30, 2009 8:52 pm

I am impressed Steve they do look good but I would have liked a pic of the interior just to see how they fit, but I do appreciate your post


Regards
Bob
HUE 1979 SE6a GTE Auto
If the cap fits wear it.
If at first you don't succeed, pay someone who knows what they are doing.
Scimitars Biggest Fan
Resto http://www.scimitarweb.co.uk/sgwrs/view ... =20&t=3377 Just for Geoff ;-)

User avatar
Taggers
Posts: 2988
Joined: Sun Nov 02, 2008 4:46 pm
Location: Exeter
Has thanked: 6 times
Been thanked: 4 times

Post by Taggers » Thu Apr 30, 2009 9:35 pm

Looks a bit like the mounting screws go through the screw holes for the vent cover.

I like them, I shall have to have a think.


1979 SE6A

User avatar
Corky
RSSOC Member
Posts: 11229
Joined: Sun Sep 24, 2006 5:02 am
Location: Macclesfield
Has thanked: 255 times
Been thanked: 212 times

Post by Corky » Thu Apr 30, 2009 9:52 pm

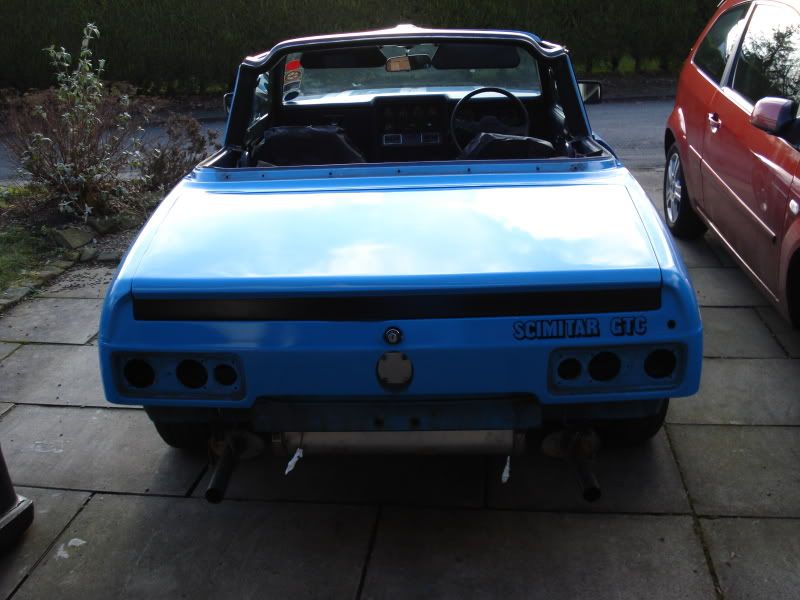

Bob if you have a look at this pic and the technical drawing in the first post, you'll see the bit that needs cutting out (the pieces of body in between the round holes) in order to get the oblong back to fit in the bodywork. I think you'd just need to fabricate a U plate to hold the unit in place (similar to the way the door handles are held in place). Alternatively use the screw holes at each corner to secure the unit to the body.

Cheers

Steve


Steve
Current:- SS1 Ti RG sprint car, Honda S2000, VW Touareg 3.0 V6
Prev:- Sabre Ti, 3xSS1 Ti, SS1 16v Turbo Racer, 5XGTC, 2XSE6B, 2XSE5A, 2XV6 Coupe, Sabre 6
Project Threads & YouTube

“It's not the winning, it's the taking apart that counts"

Tony Jones
Posts: 360
Joined: Sat Oct 04, 2008 1:35 am
Location: Northern Ireland
Has thanked: 1 time

Post by Tony Jones » Thu Apr 30, 2009 10:35 pm

scimitarcars.org.uk wrote:I'll be up there tomorrow collecting one of my cars, so I'll ask him if I can take a photo.

If your tastes are a bit more max power than max value, you could have these :-


or these

That looks better than original, your new ones IMO. 8)

There has to be one person who has to ask, so ........ where did you see the more stylised ones? How much were they?



User avatar
Roger Pennington
RSSOC Member
Posts: 20088
Joined: Tue Aug 29, 2006 9:43 pm
Has thanked: 155 times
Been thanked: 533 times

Post by Roger Pennington » Thu Apr 30, 2009 10:47 pm

Tony,

"view seller's other items"

cheers,

....Roger


....Roger

RSSOC member (since 1982)
- - - - - - - - - - - - - - - - -

"Condition can be bought at any time; Originality, once lost, is gone forever" - Doug Nye

User avatar
guardsbrigade
Posts: 627
Joined: Tue Feb 03, 2009 10:21 am
Location: South Glos
Been thanked: 1 time

Post by guardsbrigade » Thu Apr 30, 2009 11:42 pm

They look pretty good to me,really useful to know,especially considering the price NOS ones have been making on the bay..



Tony Jones
Posts: 360
Joined: Sat Oct 04, 2008 1:35 am
Location: Northern Ireland
Has thanked: 1 time

Post by Tony Jones » Sat May 02, 2009 1:43 am

Roger Pennington wrote:Tony,

"view seller's other items"

cheers,

....Roger
DOH!! :lol: :lol: :lol: :lol:

Brain is on Hol's at the moment!! Cheers mate. 8)



User avatar
Burtle
Posts: 812
Joined: Mon Jan 26, 2009 10:17 pm
Location: Somerset
Contact:

Post by Burtle » Sat May 02, 2009 7:53 am

I couldn't resist photoshoping those oval lights onto the scim.


They look good.


Nath


_________________
1979 Black SE6a GM 3L 24V quad cam V6 project.

User avatar
Corky
RSSOC Member
Posts: 11229
Joined: Sun Sep 24, 2006 5:02 am
Location: Macclesfield
Has thanked: 255 times
Been thanked: 212 times

Post by Corky » Sat May 02, 2009 9:49 am

Somebody's got too much time on their hands.....your photoshop skills are much better than mine.

Actually the bubble lights look better than I thought they would, though I'd rather stick with the more original looking ones.


Steve
Current:- SS1 Ti RG sprint car, Honda S2000, VW Touareg 3.0 V6
Prev:- Sabre Ti, 3xSS1 Ti, SS1 16v Turbo Racer, 5XGTC, 2XSE6B, 2XSE5A, 2XV6 Coupe, Sabre 6
Project Threads & YouTube

“It's not the winning, it's the taking apart that counts"

Terry H
Posts: 2189
Joined: Fri Sep 08, 2006 4:02 pm
Location: Newport Gwent
Has thanked: 19 times
Been thanked: 49 times

Post by Terry H » Sat May 02, 2009 1:43 pm

Hi All,
I just measured my SE6 rear lights and space available for these. I do really like them they suit the car perfectly, but I dont think they will fit :cry: .
I think they are 5mm on the too big side, length wise that is. my lights are 300mm, these are 310m, the space available will take 305mm but 310mm is pushing it a bit.
Regards Terry H
1185



User avatar
Corky
RSSOC Member
Posts: 11229
Joined: Sun Sep 24, 2006 5:02 am
Location: Macclesfield
Has thanked: 255 times
Been thanked: 212 times

Post by Corky » Sat May 02, 2009 2:00 pm

Terry the extra few mm could easily be shaved off if it's a problem, which I don't think it will be as there is a slight gap either side of the existing unit.

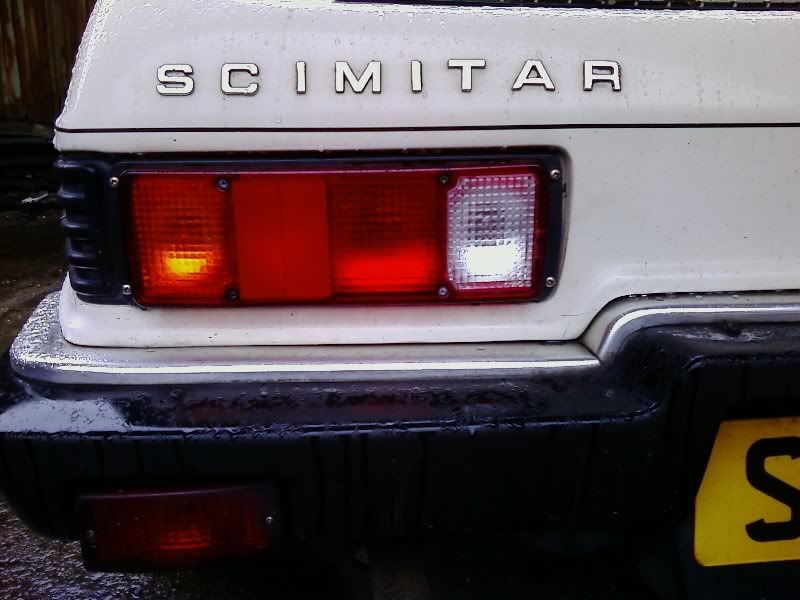

See the top close up photo.


Steve
Current:- SS1 Ti RG sprint car, Honda S2000, VW Touareg 3.0 V6
Prev:- Sabre Ti, 3xSS1 Ti, SS1 16v Turbo Racer, 5XGTC, 2XSE6B, 2XSE5A, 2XV6 Coupe, Sabre 6
Project Threads & YouTube

“It's not the winning, it's the taking apart that counts"
