Rear anti-roll bar upside down?

Topics related solely to the Middlebridge Scimitars

Moderators: scimjim, philhoward, erikscimitardemon, Roger Pennington, Lukeyboy46

simmit
Posts: 422
Joined: Sat Nov 14, 2015 2:33 pm
Has thanked: 121 times
Been thanked: 7 times

Re: Rear anti-roll bar upside down?

Post by simmit » Mon Oct 24, 2016 10:09 am

Thanks Corky.

To determine best option and check ground clearance, do you have comparative measurement of spacer tube lengths (between bushes) for SS1/Chevette Daewoo links?

Poly bush reference is useful. Do you have a preferred supplier for these parts or is it eBay trawl?



User avatar
Corky
RSSOC Member
Posts: 10606
Joined: Sun Sep 24, 2006 5:02 am
Location: Macclesfield
Has thanked: 130 times
Been thanked: 142 times

Re: Rear anti-roll bar upside down?

Post by Corky » Mon Oct 24, 2016 10:21 am

If you click on the part number above, it should take you to the cheapest vendor on eBay for that Super-Pro kit. Just check that the supplier is sending 8 X bushes, as some car models only use 4.

QRG price is £24 + P&P, eBay price is around £17 delivered.

I don't know the lengths of the tubes, but I can measure them and get back to you.


Steve
Current:- SS1 Ti RG sprint car. VW Touareg 3.0 V6
Prev:- Sabre Ti, 3xSS1 Ti, SS1 16v Turbo Racer, 5XGTC, 2XSE6B, 2XSE5A, 2XV6 Coupe, Sabre 6
Project Threads & YouTube

“It's not the winning, it's the taking apart that counts"

simmit
Posts: 422
Joined: Sat Nov 14, 2015 2:33 pm
Has thanked: 121 times
Been thanked: 7 times

Re: Rear anti-roll bar upside down?

Post by simmit » Mon Oct 24, 2016 10:56 am

Corky wrote:If you click on the part number above, it should take you to the cheapest vendor on eBay for that Super-Pro kit. Just check that the supplier is sending 8 X bushes, as some car models only use 4.

QRG price is £24 + P&P, eBay price is around £17 delivered.

I don't know the lengths of the tubes, but I can measure them and get back to you.
Much appreciated.



User avatar
peter freeman
RSSOC Member
Posts: 9371
Joined: Thu Aug 31, 2006 12:12 pm
Location: Newcastle
Has thanked: 9 times
Been thanked: 315 times
Contact:

Re: Rear anti-roll bar upside down?

Post by peter freeman » Mon Oct 24, 2016 12:08 pm

Just put my winter wheels/tyres back on and had a look at the links while doing it. The bolts are still straight and I think the poly bushes will last another year.



simmit
Posts: 422
Joined: Sat Nov 14, 2015 2:33 pm
Has thanked: 121 times
Been thanked: 7 times

Re: Rear anti-roll bar upside down?

Post by simmit » Mon Oct 24, 2016 1:51 pm

peter freeman wrote:Just put my winter wheels/tyres back on and had a look at the links while doing it. The bolts are still straight and I think the poly bushes will last another year.
Hi Peter.
It would be useful to know what sort of mileage per year your car does. Plainly, a car that hardly turns a wheel from one year to the next is no indicator.



User avatar
peter freeman
RSSOC Member
Posts: 9371
Joined: Thu Aug 31, 2006 12:12 pm
Location: Newcastle
Has thanked: 9 times
Been thanked: 315 times
Contact:

Re: Rear anti-roll bar upside down?

Post by peter freeman » Mon Oct 24, 2016 1:58 pm

Done about 10k since the poly links were fitted - not a great mileage but 4 years.



User avatar
petermisy
RIP
Posts: 473
Joined: Thu Sep 20, 2012 4:21 pm
Has thanked: 20 times
Been thanked: 5 times

Re: Rear anti-roll bar upside down?

Post by petermisy » Mon Oct 24, 2016 2:23 pm

greeny wrote:
petermisy wrote:One of my GTC's has an anti-roll bar, can definitely notice the difference when driving one after the other.
Could some of that not be shocks Peter?
Yes could be, one has Koni Classics (with the ARB) the other has Spax. It just feels like the one with the ARB is stiffer at the rear when cornering.

Peter


GTC Prototype XJW 247T
GTC No. 381 A381 GTC (was A24 EPB)
MGB GT 1971 EPE 838J (project)

2016 Ford Galaxy Titanium X 180bhp
Ford Transit Connect van
2016 Bailey Pegasus Verona Caravan

User avatar
Old and Slow
RSSOC Member
Posts: 749
Joined: Tue Jan 20, 2015 5:37 pm
Location: East Berks
Has thanked: 2 times
Been thanked: 35 times

Re: Rear anti-roll bar upside down?

Post by Old and Slow » Tue Oct 25, 2016 10:50 pm

IMO I think you can dismiss the issue of "fitting the arb upside down" as theoretically there's little or no difference between the upper and lower faces, and the horizontal-ness or upward-sloping-ness of the ends is entirely due to the drop link lengths. The arb should pivot fairly easily in the chassis mounts (with drop-links disconnected);the arb is only ever stressed when one wheel either bumps or droops.
I think the drop-link length can be determined by ensuring the arms are horizontal when the suspension is at rest; movement up and down will then result in an arc that introduces the minimum of bending forces on the drop links.


Philip Needham
Ashley-bodied TR3; '54 Ford Consul; '55 AC 2-Litre Saloon;'65 850 Mini; '70 Ford Zodiac MkIV; XR3i
'81 911SC Targa, '64 Sabre Six

simmit
Posts: 422
Joined: Sat Nov 14, 2015 2:33 pm
Has thanked: 121 times
Been thanked: 7 times

Re: Rear anti-roll bar upside down?

Post by simmit » Sun Nov 06, 2016 1:33 pm

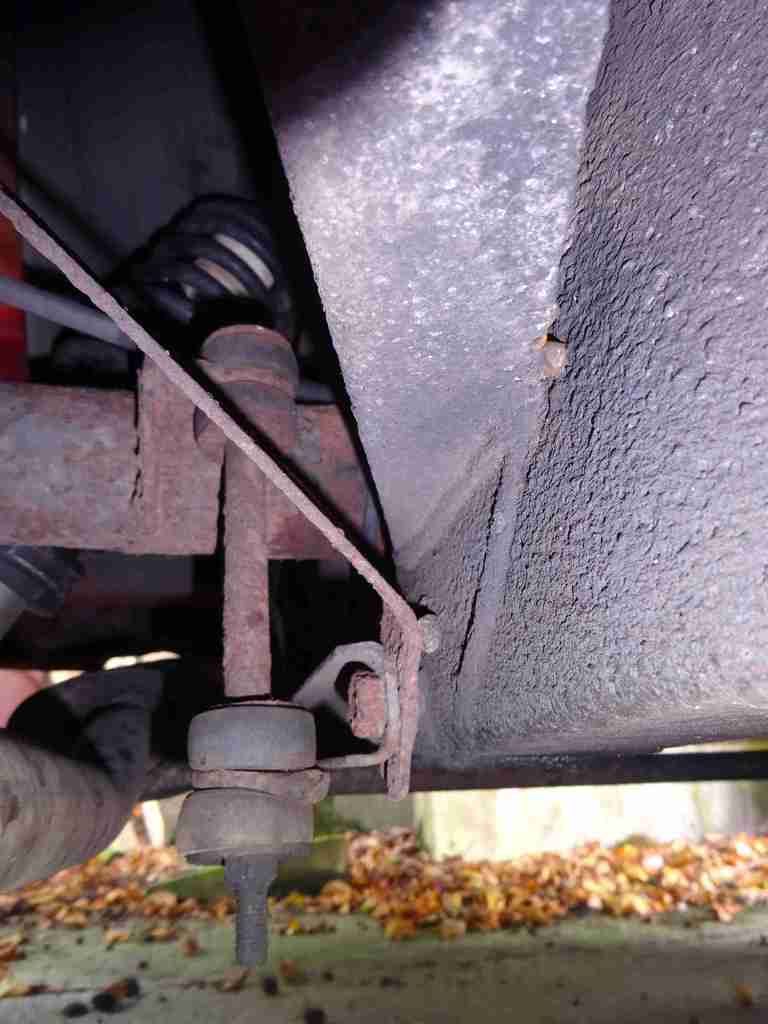

I've opted for Chevette drop link (thanks Corky) fitted with ARB bent ends facing upwards (as I found it). Drop link spacer tube in my original set-up measured 30mm whereas the Chevette spacer now fitted has 75mm length. I fitted the through bolt with its head at the bottom and find with suspension in neutral position it does not hang lower than the chassis so shouldn't present a ground clearance problem.

It will take time but if a problem arises I'll post an update.
