Re: V6 Coupe Overdrive Gearbox Mounting

Post by Roger Pennington » Thu May 19, 2016 1:13 am

scimjim wrote:Strange that there seems to be two versions of the LH overdrive casting?
and also that it's apparently only just come to light? Maybe the overdrive repair specialists might be aware of it, and could make a recommendation?


....Roger

RSSOC member (since 1982)
- - - - - - - - - - - - - - - - -

"Condition can be bought at any time; Originality, once lost, is gone forever" - Doug Nye

User avatar
Roger Pennington
RSSOC Member
Posts: 19318
Joined: Tue Aug 29, 2006 9:43 pm
Has thanked: 112 times
Been thanked: 450 times

Re: V6 Coupe Overdrive Gearbox Mounting

Post by Roger Pennington » Thu May 19, 2016 1:25 am

Miniman24 wrote:What do we think the chances are of this Vibra Technics mount fitting? If you eBay search "cortina gearbox mount", it comes up as a direct replacement for the mount pictured above. Are the cross member mount holes in your two mounts 95mm apart, James?

EBay item number: 271847248048
I'm not an expert on all the gearbox types listed as fitments, however I see it lists the Type 9, which would normally take the later type mount (i.e. the one you can get), in which case I *suspect* it is probably no more likely to fit, than that one is? :(


....Roger

RSSOC member (since 1982)
- - - - - - - - - - - - - - - - -

"Condition can be bought at any time; Originality, once lost, is gone forever" - Doug Nye

Miniman24
Posts: 21
Joined: Wed May 04, 2016 12:31 pm

Re: V6 Coupe Overdrive Gearbox Mounting

Post by Miniman24 » Thu May 19, 2016 12:06 pm

I've asked the eBay seller for the dimensions of the V section of the Vibra mount. See what he comes back with



User avatar
French Coupé
Posts: 200
Joined: Tue Nov 15, 2011 2:54 pm
Location: Draguignan, France
Has thanked: 3 times
Been thanked: 3 times

Re: V6 Coupe Overdrive Gearbox Mounting

Post by French Coupé » Thu May 19, 2016 8:00 pm

scimjim wrote:Strange that there seems to be two versions of the LH overdrive casting?
Do you mean within Scimitar production Jim? Or compared to other cars that use the LH overdrive? Are there other Scimitars which use the LH overdrive combined with the later type mount?
Miniman24 wrote:Are the cross member mount holes in your two mounts 95mm apart, James?
I didn't measure them when the old mount was off the car, but they both fitted the cross member ok, just not the tail of the gearbox! :(


James

1968 Scimitar Coupé, 1971 MG BGT, 1950 Royal Enfield G

User avatar
philhoward
RSSOC Member
Posts: 24085
Joined: Tue Aug 29, 2006 5:41 pm
Location: Staffs, UK
Has thanked: 41 times
Been thanked: 527 times
Contact:

Re: V6 Coupe Overdrive Gearbox Mounting

Post by philhoward » Thu May 19, 2016 8:09 pm

The LH was also used in the SE5 and early 5a - I'm not aware of anyone having issues with a current spec mount on a GTE. I did start to look at what other cars used the LH unit to see what (if any) other mounts were used but got sidetracked :oops:


Phil Howard
Scimitarweb Forum Admin
SS1 1600 Rooster Turbo; Sabre Mk1.5, Sabre Mk2
Previous: SE5/5a/SS1 No.1/SS1 Rooster/SS1 1800Ti/SE5a 24 Valve
http://www.ss1turbo.com
Never try and argue with an idiot. They drag you down to their level, then beat you based on experience.

User avatar
philhoward
RSSOC Member
Posts: 24085
Joined: Tue Aug 29, 2006 5:41 pm
Location: Staffs, UK
Has thanked: 41 times
Been thanked: 527 times
Contact:

Re: V6 Coupe Overdrive Gearbox Mounting

Post by philhoward » Thu May 19, 2016 8:19 pm

According to the always accurate :lol: Wikipedia:

From 1967 the LH-type overdrive was introduced, and this featured in a variety of models, including 1968–1980 MGBs, the MGC, the Ford Zephyr, early Reliant Scimitars, TVRs, and Gilberns.

Note the smiley as it doesn't mention the J type being fitted to 73-on Scimitars...


Phil Howard
Scimitarweb Forum Admin
SS1 1600 Rooster Turbo; Sabre Mk1.5, Sabre Mk2
Previous: SE5/5a/SS1 No.1/SS1 Rooster/SS1 1800Ti/SE5a 24 Valve
http://www.ss1turbo.com
Never try and argue with an idiot. They drag you down to their level, then beat you based on experience.

Miniman24
Posts: 21
Joined: Wed May 04, 2016 12:31 pm

Re: V6 Coupe Overdrive Gearbox Mounting

Post by Miniman24 » Mon May 23, 2016 9:39 pm

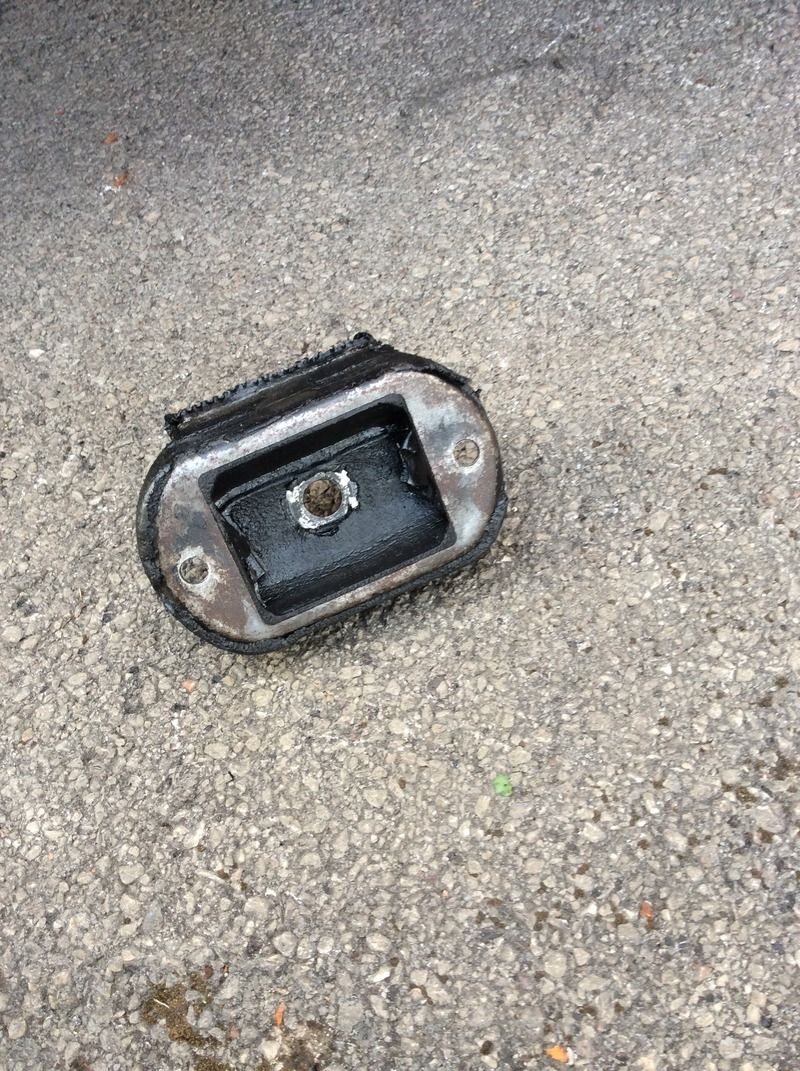

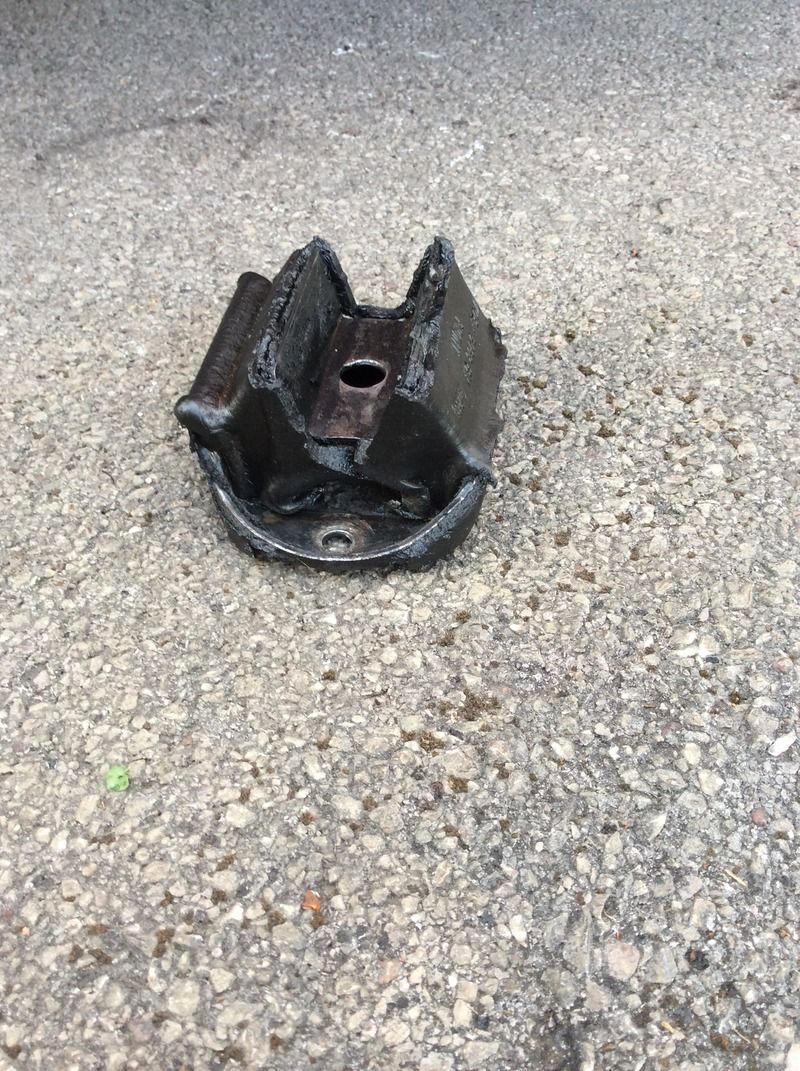

Another curveball here - took the mount off mine earlier and it appears to be different to the one posted earlier, although it appears to have the same part number! The ends are more rounded like the common replacement and it is sided - one side is branded "front". As you can see, it's a bit worse for wear!






User avatar
French Coupé
Posts: 200
Joined: Tue Nov 15, 2011 2:54 pm
Location: Draguignan, France
Has thanked: 3 times
Been thanked: 3 times

Re: V6 Coupe Overdrive Gearbox Mounting

Post by French Coupé » Wed May 25, 2016 8:32 am

How do the measurements of the "V" compare Vic? If you're lucky you might be able to fit the mount which is available from QRG.


James

1968 Scimitar Coupé, 1971 MG BGT, 1950 Royal Enfield G

Miniman24
Posts: 21
Joined: Wed May 04, 2016 12:31 pm

Re: V6 Coupe Overdrive Gearbox Mounting

Post by Miniman24 » Fri May 27, 2016 9:30 am

Measurements are the same as the one posted earlier, so the common mount wont fit - worth a try though! Thq quest continues, really need to find one soon as the movement is causing the steering to wobble!



User avatar
scimjim
RSSOC Member
Posts: 35817
Joined: Sun Oct 01, 2006 10:08 pm
Location: Gloucester
Has thanked: 113 times
Been thanked: 817 times

Re: V6 Coupe Overdrive Gearbox Mounting

Post by scimjim » Fri May 27, 2016 1:52 pm

Just to confirm that the parts lost shows that the GTE (SE5/5a) have one mount for all boxes (LH, J, 4 speed & BW35) part number 204524 and the SE6 on manual has another part number (but presumably the same dimensions) for the J type and C3. So it definitely appears that there were two types of LH box?


Jim King

Current: SE5 (8Ball), TI SS1 (snotty), 1600 SS1 (G97), 1600 SS1 (C686CCR), 2.5TD SE5a (diesel 5a), 6 x random other SS1s.
Previous: SE5, 3 x SE5a, 2 x SE6a, 3 x SE6b, GTC, 2.9i GTC, 3 x 1600 SS1, 1300 SS1, Mk1 Ti Sabre, Mk1.5 CVH Sabre
Chief mechanic for: 1400 K series SS1 (Megan3), 1400 CVH EFi SS1 (Grawpy), Sabre/MX5 auto (The Flying Broomstick),
1300 SS1 (Number One) & Sarah's coupe.
CURE THE FAULT - NOT THE SYMPTOMS

User avatar
scimjim
RSSOC Member
Posts: 35817
Joined: Sun Oct 01, 2006 10:08 pm
Location: Gloucester
Has thanked: 113 times
Been thanked: 817 times

Re: V6 Coupe Overdrive Gearbox Mounting

Post by scimjim » Sun May 29, 2016 11:38 am

Just measured a type 9, 4 speed, C3 and J type and they're all identical and nearer to the "new" measurements (with reference to the pic on page 2). Can't get to my LH because it's fitted :-) but it has the same mount as the type 9 because I replaced it with one I bought for an SS1 last time the box was out.


Jim King

Current: SE5 (8Ball), TI SS1 (snotty), 1600 SS1 (G97), 1600 SS1 (C686CCR), 2.5TD SE5a (diesel 5a), 6 x random other SS1s.
Previous: SE5, 3 x SE5a, 2 x SE6a, 3 x SE6b, GTC, 2.9i GTC, 3 x 1600 SS1, 1300 SS1, Mk1 Ti Sabre, Mk1.5 CVH Sabre
Chief mechanic for: 1400 K series SS1 (Megan3), 1400 CVH EFi SS1 (Grawpy), Sabre/MX5 auto (The Flying Broomstick),
1300 SS1 (Number One) & Sarah's coupe.
CURE THE FAULT - NOT THE SYMPTOMS

User avatar
scimjim
RSSOC Member
Posts: 35817
Joined: Sun Oct 01, 2006 10:08 pm
Location: Gloucester
Has thanked: 113 times
Been thanked: 817 times

Re: V6 Coupe Overdrive Gearbox Mounting

Post by scimjim » Sun May 29, 2016 11:53 am

Mount from J type is 22 across at base and 30 across at 25mm high - and fits the 4 speed perfectly.
4 speed and C3
Type 9 and C3


Jim King

Current: SE5 (8Ball), TI SS1 (snotty), 1600 SS1 (G97), 1600 SS1 (C686CCR), 2.5TD SE5a (diesel 5a), 6 x random other SS1s.
Previous: SE5, 3 x SE5a, 2 x SE6a, 3 x SE6b, GTC, 2.9i GTC, 3 x 1600 SS1, 1300 SS1, Mk1 Ti Sabre, Mk1.5 CVH Sabre
Chief mechanic for: 1400 K series SS1 (Megan3), 1400 CVH EFi SS1 (Grawpy), Sabre/MX5 auto (The Flying Broomstick),
1300 SS1 (Number One) & Sarah's coupe.
CURE THE FAULT - NOT THE SYMPTOMS

User avatar
Roger Pennington
RSSOC Member
Posts: 19318
Joined: Tue Aug 29, 2006 9:43 pm
Has thanked: 112 times
Been thanked: 450 times

Re: V6 Coupe Overdrive Gearbox Mounting

Post by Roger Pennington » Sun May 29, 2016 12:26 pm

scimjim wrote:Just to confirm that the parts lost shows that the GTE (SE5/5a) have one mount for all boxes (LH, J, 4 speed & BW35) part number 204524 and the SE6 on manual has another part number (but presumably the same dimensions) for the J type and C3. So it definitely appears that there were two types of LH box?
I was interested to read that, because actually, at least according to my Se5a Parts List, the position may be a bit more complex than that. :roll:

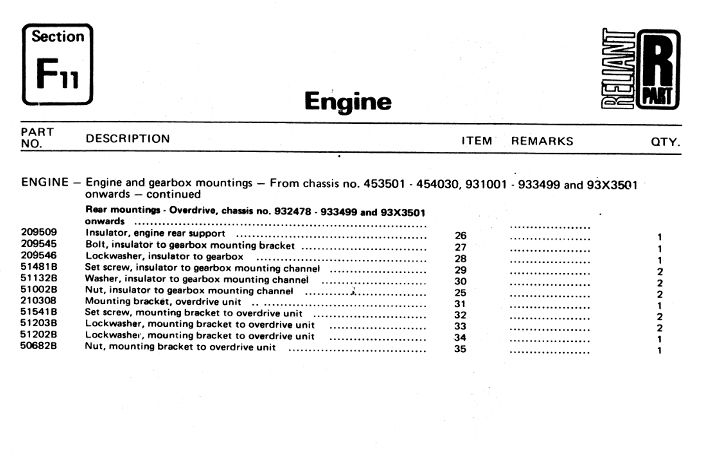

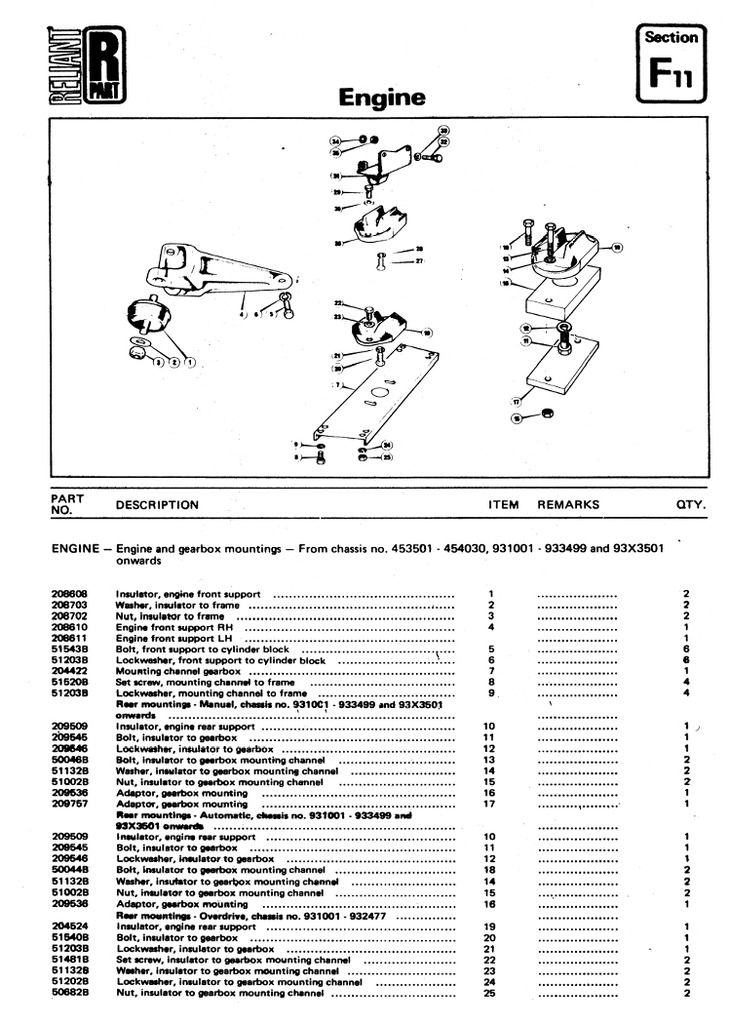

(Quoting from the respective parts lists)

The V6 Coupe and the Se5 are shown as having ............... Part 204524

The Se6/6a (manual-o/d and auto) are shown as having.......Part 209509

But the Se5a parts list has a mixture of the two, as follows:



(note that the chassis numbers in the detail of the list, don't seem to cover the full range of the chassis numbers implied in the page heading.... :roll: )

Also note that of course, simply having different part numbers, doesn't necessarily mean that they are different sizes.....


....Roger

RSSOC member (since 1982)
- - - - - - - - - - - - - - - - -

"Condition can be bought at any time; Originality, once lost, is gone forever" - Doug Nye

Miniman24
Posts: 21
Joined: Wed May 04, 2016 12:31 pm

Re: V6 Coupe Overdrive Gearbox Mounting

Post by Miniman24 » Mon May 30, 2016 9:55 am

http://www.newpartsonline.co.uk/index.p ... _id=269608

What do we reckon? Ive emailed asking for dimensions, I think he will be bought out of stock if its right!



teecee
RSSOC Member
Posts: 28
Joined: Tue Sep 01, 2015 10:21 am
Location: Preston Patrick near Kendal

Re: V6 Coupe Overdrive Gearbox Mounting

Post by teecee » Sat Jun 04, 2016 12:01 am

Sorry its been a while in replying, well I am using my old mounting as still unable to track down the correct one. Yes I did purchase one from Walkers in Chester and was assured it was the only one, and it looks identical to the photograph above, however its bigger as the "V" section has to fit into the tail-shaft "V"alloy casting on the Laycock LH overdrive. It would appear from what little information I have found that this part is probably from a MK 4 Zodiac V6 with overdrive as its marked FoMoCo with 2RB and 6068A on the rubber, The dimension on the item supplied by Walkers and the ones on eBay are 28 mm across the top of the "V" mine is nearer to 36 mm across the top of the "V". I did see an early gearbox and overdrive for sale on eBay a few weeks ago and this had the same mounting as mine, so I have no reason to suspect its not an original factory specification. As the two parts look identical and the metal base plate is nearly identical its easy to think they are the same but they are not.

TC
