Splined Hubs

Post by housemartin » Mon Jan 25, 2016 11:32 pm

Good evening, has anyone got any pictures or can give me a link to a picture/thread showing the splined hubs used on an se4 to fit wire wheels.
I am curious to know how to get to the nut to adjust the front bearing play?
Thanks
Dan



User avatar
Coupe Racing
RSSOC Member
Posts: 7093
Joined: Mon Jul 23, 2007 10:51 pm
Location: Nr Telford - Shropshire
Has thanked: 10 times
Been thanked: 84 times

Re: Splined Hubs

Post by Coupe Racing » Tue Jan 26, 2016 6:14 am

Don't you have to unbolt the spline hub adaptor to access the cap that covers the bearing nut and pin
Just a guess as I've never had cause to look never having had wires


Blessed are the Cheese makers

Better to be an hour early than 1 minute late

ScimmyMike
RSSOC Member
Posts: 4925
Joined: Sun Mar 15, 2009 5:12 pm
Location: Hyde, Cheshire
Has thanked: 14 times
Been thanked: 113 times

Re: Splined Hubs

Post by ScimmyMike » Wed Jan 27, 2016 1:58 pm

You'll get the end grease cap off using a screw but you'll not get the split pin out without removing the adaptors


SE4c rebuilding. SE5a similar it seems!
SAAB C900 2 door
Scimitar SE4 SE4c SE5 SE6b Austin A35

High Peak Noggin Secretary & general dogsbody

www.high peak noggin

If you can see the tree before you hit it that's understeer
if you only feel the tree as you hit it that's oversteer

User avatar
Roger Pennington
RSSOC Member
Posts: 19304
Joined: Tue Aug 29, 2006 9:43 pm
Has thanked: 118 times
Been thanked: 450 times

Re: Splined Hubs

Post by Roger Pennington » Wed Jan 27, 2016 2:03 pm

So do you then use an ordinary wheel on the studs to allow you to spin the hub and feel for play?


....Roger

RSSOC member (since 1982)
- - - - - - - - - - - - - - - - -

"Condition can be bought at any time; Originality, once lost, is gone forever" - Doug Nye

User avatar
housemartin
RSSOC Member
Posts: 64
Joined: Wed Feb 13, 2013 4:59 pm
Location: The best side of the Scottish Border
Has thanked: 11 times
Been thanked: 4 times

Re: Splined Hubs

Post by housemartin » Wed Jan 27, 2016 7:49 pm

So where the se4 car build with bolt on wire wheel adapters and not a different half shaft/hub design?
Maybe this thread should be on the se4/coupe forum.
I am sure a picture will make the adjustments of front wheel play and rear brake shoe replacement seem simple.
Cheers Dan



User avatar
Oaksey
RSSOC Member
Posts: 5520
Joined: Fri Mar 23, 2012 9:45 pm
Location: Cheshire
Has thanked: 38 times
Been thanked: 107 times
Contact:

Re: Splined Hubs

Post by Oaksey » Wed Jan 27, 2016 8:03 pm

Here

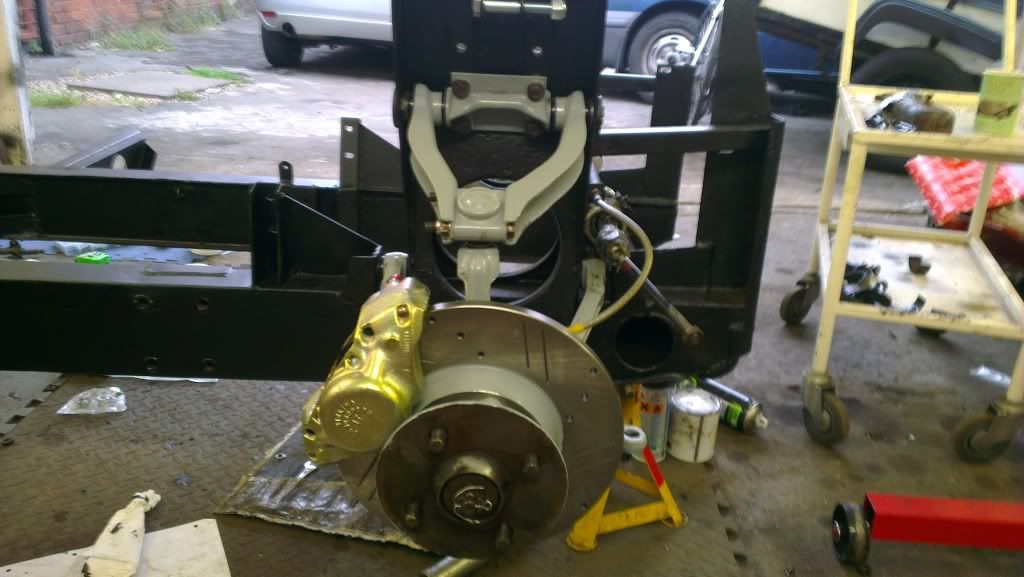

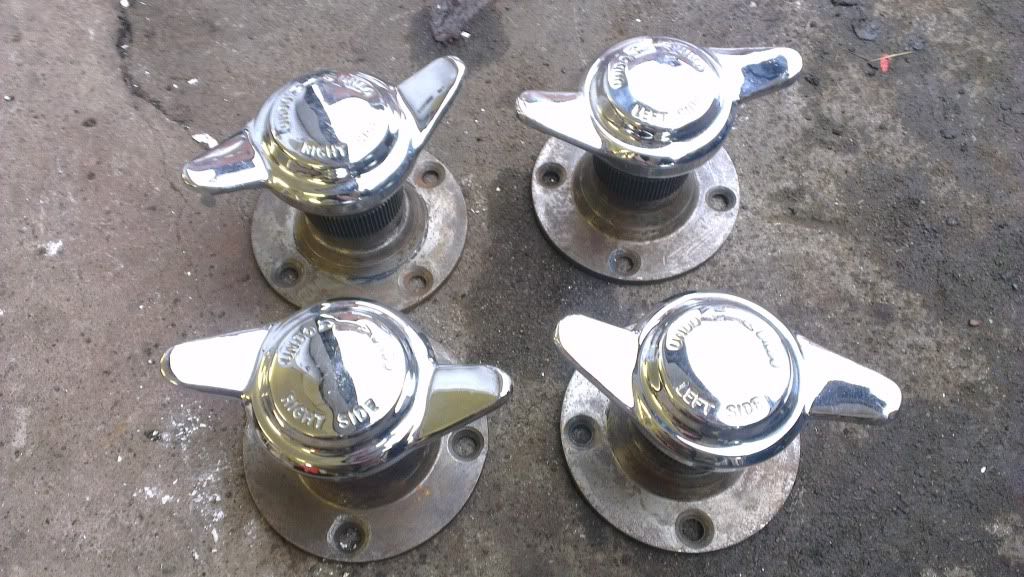

That's a wire wheeled Coupé front hub. The hub adapters bolt onto the hubs and drums


Josh Oakes
2015, 2016 and 2017 SSSC Champion
1974 Yellow Se5a Overdrive
1971 Blue Jaguar XJ6
1966 Blue Coupe Straight Six
Previous- Coupe S6,
SS1 Ti, E90 SS1 Ti, SE6a x3, SE5 Auto, SS1 CVH, Mk2 Sabre, Rebel Estate

User avatar
Coupe Racing
RSSOC Member
Posts: 7093
Joined: Mon Jul 23, 2007 10:51 pm
Location: Nr Telford - Shropshire
Has thanked: 10 times
Been thanked: 84 times

Re: Splined Hubs

Post by Coupe Racing » Wed Jan 27, 2016 8:51 pm

As I said unbolt the adaptors
Thanks to Josh for the picture
