Post by Corky » Wed Feb 20, 2013 9:58 am

CNHSS1 wrote:Steve,
Your cars the same design flipped manifold as Trevors by the way
Thought so, away from the car at the moment so couldn't nip out to check.


Steve
Current:- SS1 Ti RG sprint car, Honda S2000, VW Touareg 3.0 V6
Prev:- Sabre Ti, 3xSS1 Ti, SS1 16v Turbo Racer, 5XGTC, 2XSE6B, 2XSE5A, 2XV6 Coupe, Sabre 6
Project Threads & YouTube

“It's not the winning, it's the taking apart that counts"

User avatar
td99
RSSOC Member
Posts: 1812
Joined: Sat Jun 30, 2007 9:37 pm
Location: Eindhoven, Netherlands
Has thanked: 17 times
Been thanked: 34 times

Re: E150 UOL rebuild

Post by td99 » Wed Feb 20, 2013 9:45 pm

Started on te Ex manifold tonight. Made more precise template than that of yesterday.
Flipped it over using the manifold exhaust gas outlets for registration and stuck it back on manifold with double-sided carpet tape.
Cut the outer "ears" off with plasma cutter (not neat!) and tacked then into position on template


Trevor - Tesla 3, 1800Ti, RAV4
1800Ti DET project now cancelled

User avatar
td99
RSSOC Member
Posts: 1812
Joined: Sat Jun 30, 2007 9:37 pm
Location: Eindhoven, Netherlands
Has thanked: 17 times
Been thanked: 34 times

Re: E150 UOL rebuild

Post by td99 » Wed Feb 20, 2013 9:58 pm

Next: set TIG unit to 150 amps, pulsed - hoping for good penetration and finished the job on both sides.
After uloading this, it made me check the state of the weld on the right, but it's just a trick of the light and the "ear' is a bit proud of the flange, even after ";cleaning" with angle grinder.


Trevor - Tesla 3, 1800Ti, RAV4
1800Ti DET project now cancelled

User avatar
td99
RSSOC Member
Posts: 1812
Joined: Sat Jun 30, 2007 9:37 pm
Location: Eindhoven, Netherlands
Has thanked: 17 times
Been thanked: 34 times

Re: E150 UOL rebuild

Post by td99 » Wed Feb 20, 2013 10:08 pm

Interestingly, there is quite some difference in the manifolds.
The dimension marked in photo is
On Cylinder head: 31.4 cm
On XS Power manifold: 31.4 cm
On other manifold: 32 cm, that 6 mm is of course distributed, but giving a definite 3 mm mismatch on outer ports.
Attachments


Trevor - Tesla 3, 1800Ti, RAV4
1800Ti DET project now cancelled

User avatar
CNHSS1
RSSOC Member
Posts: 14683
Joined: Tue Aug 22, 2006 5:13 pm
Location: Shrewsbury, Shropshire
Has thanked: 452 times
Been thanked: 392 times
Contact:

Re: E150 UOL rebuild

Post by CNHSS1 » Wed Feb 20, 2013 10:23 pm

Manifold ports should be bigger than exh port in head


Racing is life, everything before and after, is just waiting--Steve McQueen
6 time Class Champ, 2006 & 2014 SSSC Champion

RIP Batmobile, await the Rise of Dark Knight 8)
Sabre 'Light Sabre' 360hp!!

User avatar
Corky
RSSOC Member
Posts: 11407
Joined: Sun Sep 24, 2006 5:02 am
Location: Macclesfield
Has thanked: 309 times
Been thanked: 233 times

Re: E150 UOL rebuild

Post by Corky » Thu Feb 21, 2013 9:29 am

So on eBay it's this one ? http://cgi.ebay.co.uk/ws/380580788240

I wonder if it would be possible for them to supply the manifolds with the flange the right way round.


Steve
Current:- SS1 Ti RG sprint car, Honda S2000, VW Touareg 3.0 V6
Prev:- Sabre Ti, 3xSS1 Ti, SS1 16v Turbo Racer, 5XGTC, 2XSE6B, 2XSE5A, 2XV6 Coupe, Sabre 6
Project Threads & YouTube

“It's not the winning, it's the taking apart that counts"

User avatar
td99
RSSOC Member
Posts: 1812
Joined: Sat Jun 30, 2007 9:37 pm
Location: Eindhoven, Netherlands
Has thanked: 17 times
Been thanked: 34 times

Re: E150 UOL rebuild

Post by td99 » Thu Feb 21, 2013 10:10 am

You'd have to find the actual manufacturers - they might even have a bin of "faulty" ones made back-to-front :wink: :wink:


Trevor - Tesla 3, 1800Ti, RAV4
1800Ti DET project now cancelled

User avatar
Corky
RSSOC Member
Posts: 11407
Joined: Sun Sep 24, 2006 5:02 am
Location: Macclesfield
Has thanked: 309 times
Been thanked: 233 times

Re: E150 UOL rebuild

Post by Corky » Fri Feb 22, 2013 4:03 pm

td99 wrote:You'd have to find the actual manufacturers - they might even have a bin of "faulty" ones made back-to-front :wink: :wink:
That would be a nice find !

I'll drop the ebay seller an email, if you don't ask .............. 8)


Steve
Current:- SS1 Ti RG sprint car, Honda S2000, VW Touareg 3.0 V6
Prev:- Sabre Ti, 3xSS1 Ti, SS1 16v Turbo Racer, 5XGTC, 2XSE6B, 2XSE5A, 2XV6 Coupe, Sabre 6
Project Threads & YouTube

“It's not the winning, it's the taking apart that counts"

User avatar
td99
RSSOC Member
Posts: 1812
Joined: Sat Jun 30, 2007 9:37 pm
Location: Eindhoven, Netherlands
Has thanked: 17 times
Been thanked: 34 times

Re: E150 UOL rebuild

Post by td99 » Sun Feb 24, 2013 10:42 am

Removed the lower 4 studs and hung the manifold on the head.
Shocked at the ultra-short studs into head, while the head has 20 mm of thread.
Attachments
Lower Studs.jpg
Short ends into the head
Lower Studs.jpg (84.96 KiB) Viewed 1867 times


Trevor - Tesla 3, 1800Ti, RAV4
1800Ti DET project now cancelled

User avatar
td99
RSSOC Member
Posts: 1812
Joined: Sat Jun 30, 2007 9:37 pm
Location: Eindhoven, Netherlands
Has thanked: 17 times
Been thanked: 34 times

Re: E150 UOL rebuild

Post by td99 » Sun Feb 24, 2013 10:56 am

It's going to be a tight fit...well I knew that but even so...oval downpipe maybe?
form directly above
and with turbo (T28 I think) in place...
and with proposed V-coupling... which will have to be replaced by a more compact design.
I'll consider whether to cut the neck of the manifold to angle the turbo closer to the engine. That could also allow me to gain another centimeter longitudinally.(Need to fit inner wing before that of course).
If turbo is closer to engine than now, the actuator will have to be re-positioned as it will foul the cambelt cover. But should be least of worries.
Or cut the pipes at head to change angle and maybe create more space for downpipe.
I can move the engine about 1 cm forwards too.

Have a business trip this week, so time to consider...
Last edited by td99 on Sun Feb 24, 2013 11:00 am, edited 1 time in total.


Trevor - Tesla 3, 1800Ti, RAV4
1800Ti DET project now cancelled

User avatar
Roger Pennington
RSSOC Member
Posts: 20321
Joined: Tue Aug 29, 2006 9:43 pm
Has thanked: 168 times
Been thanked: 564 times

Re: E150 UOL rebuild

Post by Roger Pennington » Sun Feb 24, 2013 10:59 am

td99 wrote:Removed the lower 4 studs and hung the manifold on the head.
Shocked at the ultra-short studs into head, while the head has 20 mm of thread.
That does seem to be a generic TI problem - see this thread


....Roger

RSSOC member (since 1982)
- - - - - - - - - - - - - - - - -

"Condition can be bought at any time; Originality, once lost, is gone forever" - Doug Nye

User avatar
Corky
RSSOC Member
Posts: 11407
Joined: Sun Sep 24, 2006 5:02 am
Location: Macclesfield
Has thanked: 309 times
Been thanked: 233 times

Re: E150 UOL rebuild

Post by Corky » Sun Feb 24, 2013 11:06 am

Trevor, do you want me to take some measurements ?

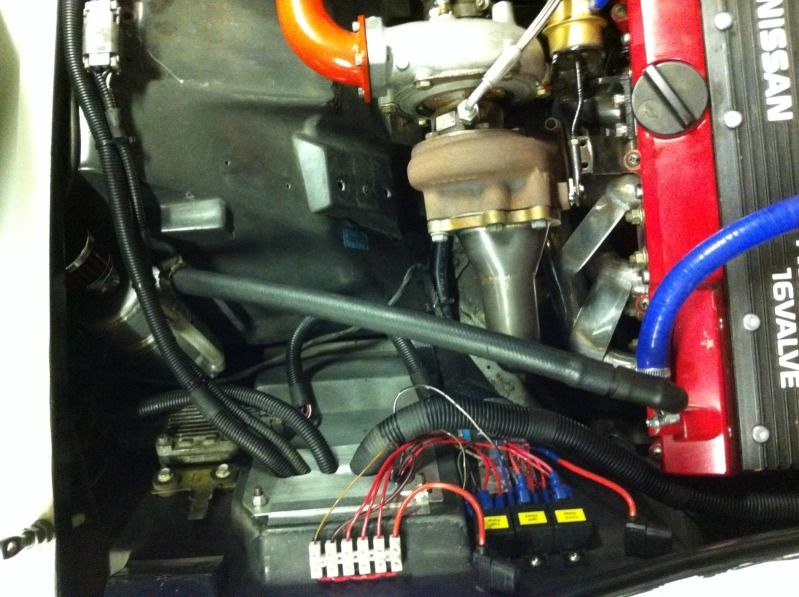

Best photos I have are these, but can take some more if it'll help.
