Re: Rat Rod (now out of the garage)

Post by Gillsfan » Sun Apr 17, 2016 3:57 pm

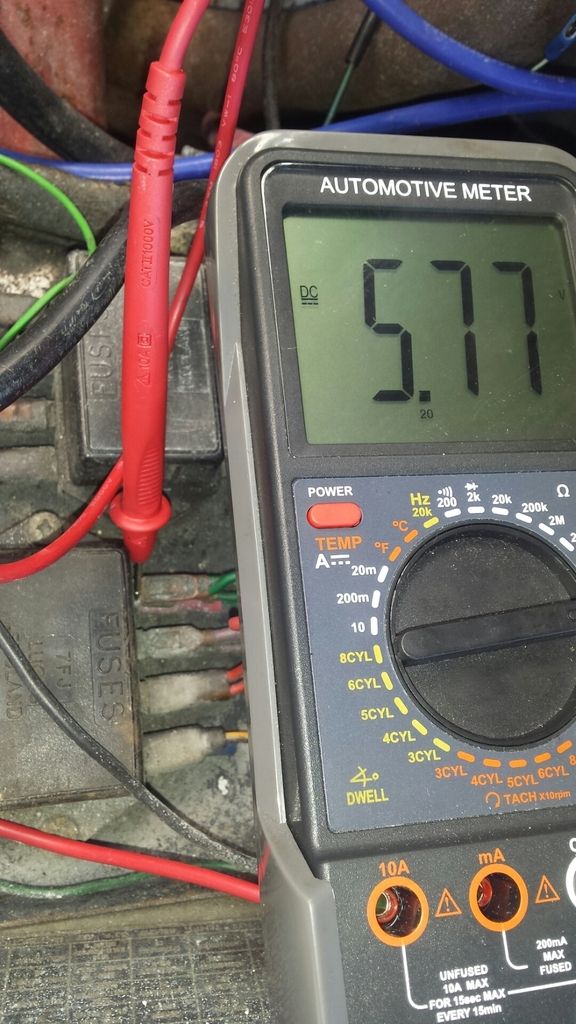

I have no idea how I got 2 different voltages. I've just tried if with it running (previous voltages where battery only). I took the wires off to look for the markings which where as you said Jim. Wires back on and running I get 6.8 from both sides of the voltage stabiliser.


Steve

What if the Hokey Cokey is what its all about

1969 SE 5 Manual O/D Rat Rod
RSSOC Jaffa cakes in a minute champion

User avatar
Gillsfan
Posts: 2957
Joined: Wed Aug 19, 2009 7:58 am
Location: Somerton, Somerset.
Has thanked: 6 times
Been thanked: 17 times
Contact:

Re: Rat Rod (now out of the garage)

Post by Gillsfan » Sun Apr 17, 2016 3:59 pm

Correction to my last the instrument side is about 1/2 volt less than the battery side.

I get 6.8 at the fuse box as well. But only the voltage stabiliser supply other fuse point are 12 volts ????????


Steve

What if the Hokey Cokey is what its all about

1969 SE 5 Manual O/D Rat Rod
RSSOC Jaffa cakes in a minute champion

User avatar
scimjim
RSSOC Member
Posts: 33528
Joined: Sun Oct 01, 2006 10:08 pm
Location: Gloucester
Has thanked: 107 times
Been thanked: 653 times

Re: Rat Rod (now out of the garage)

Post by scimjim » Sun Apr 17, 2016 4:13 pm

Your meter won't measure the output accurately enough - any voltage is just an indication that it's not FUBARd. You shouldn't have anything other than battery voltage anywhere on the fuse boxes (or in fact, anywhere apart from fuel level and water temp system).


Jim King

Current: SE5 (8Ball), TI SS1 (snotty), 1600 SS1 (G97), 1600 SS1 (C686CCR), 2.5TD SE5a (diesel 5a), 6 x random other SS1s.
Previous: SE5, 3 x SE5a, 2 x SE6a, 3 x SE6b, GTC, 2.9i GTC, 3 x 1600 SS1, 1300 SS1, Mk1 Ti Sabre, Mk1.5 CVH Sabre
Chief mechanic for: 1400 K series SS1 (Megan3), 1400 CVH EFi SS1 (Grawpy), Sabre/MX5 auto (The Flying Broomstick),
1300 SS1 (Number One) & Sarah's coupe.
CURE THE FAULT - NOT THE SYMPTOMS

User avatar
Gillsfan
Posts: 2957
Joined: Wed Aug 19, 2009 7:58 am
Location: Somerton, Somerset.
Has thanked: 6 times
Been thanked: 17 times
Contact:

Re: Rat Rod (now out of the garage)

Post by Gillsfan » Sun Apr 17, 2016 4:29 pm

I had a look to check the ignition light wire on the back of the alternator because the light wasn't coming on and when I check the alternator was only kicking out 12.5 volts. It looked ok but on closer inspection wasn't connected. Now it's on property I have an ignition light and the alternator is kicking out 14 volts.

OK anyone any ideas why I'm getting a reduced voltage?



Steve

What if the Hokey Cokey is what its all about

1969 SE 5 Manual O/D Rat Rod
RSSOC Jaffa cakes in a minute champion

User avatar
Gillsfan
Posts: 2957
Joined: Wed Aug 19, 2009 7:58 am
Location: Somerton, Somerset.
Has thanked: 6 times
Been thanked: 17 times
Contact:

Re: Rat Rod (now out of the garage)

Post by Gillsfan » Sun Apr 17, 2016 4:46 pm

Right it was a blown fuse. Is it possible to get voltage back thought the wiring. Because that appears to be what happened. I checked again and had 12 volts one side of the fuse and 6 ish the other. Even with the fuse out that wa the case. New fuse in and 12 volts both sides and at the voltage stabiliser.

OK I've been fiddling while typing this and the indicators are working (one bulb is out). Admission time I've been looking at the wrong bit. I've been looking at this thinking it was the flasher unit

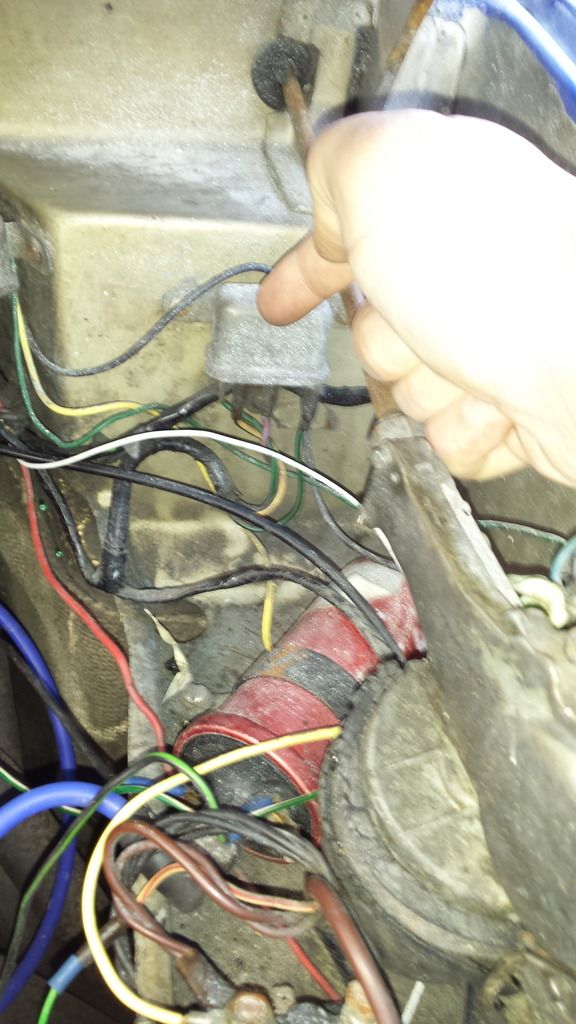

Now the indicators are working it's a flasher unit behind the dash that is operating. What is it I'm pointing at? It clicked like a flasher unit as I wiggled wires.

Not surprisingly the fuel and temp gauge are now indicating.


Steve

What if the Hokey Cokey is what its all about

1969 SE 5 Manual O/D Rat Rod
RSSOC Jaffa cakes in a minute champion

User avatar
toolmanchris
RSSOC Member
Posts: 510
Joined: Wed Dec 19, 2012 2:34 pm
Location: Doncaster
Has thanked: 3 times
Been thanked: 23 times
Contact:

Re: Rat Rod (now out of the garage)

Post by toolmanchris » Sun Apr 17, 2016 4:50 pm

At a guess headlight relay


Chris Barker
http://www.toolmanweb.com/scimitar
RSSOC: 4125

Yellow SE5a - currently undergoing restoration
Seat Leon FR - daily driver
Silver Hyundai SantaFe 2.2 - for pulling the caravan

User avatar
scimjim
RSSOC Member
Posts: 33528
Joined: Sun Oct 01, 2006 10:08 pm
Location: Gloucester
Has thanked: 107 times
Been thanked: 653 times

Re: Rat Rod (now out of the garage)

Post by scimjim » Sun Apr 17, 2016 4:51 pm

HRW relay.


Jim King

Current: SE5 (8Ball), TI SS1 (snotty), 1600 SS1 (G97), 1600 SS1 (C686CCR), 2.5TD SE5a (diesel 5a), 6 x random other SS1s.
Previous: SE5, 3 x SE5a, 2 x SE6a, 3 x SE6b, GTC, 2.9i GTC, 3 x 1600 SS1, 1300 SS1, Mk1 Ti Sabre, Mk1.5 CVH Sabre
Chief mechanic for: 1400 K series SS1 (Megan3), 1400 CVH EFi SS1 (Grawpy), Sabre/MX5 auto (The Flying Broomstick),
1300 SS1 (Number One) & Sarah's coupe.
CURE THE FAULT - NOT THE SYMPTOMS

User avatar
Gillsfan
Posts: 2957
Joined: Wed Aug 19, 2009 7:58 am
Location: Somerton, Somerset.
Has thanked: 6 times
Been thanked: 17 times
Contact:

Re: Rat Rod (now out of the garage)

Post by Gillsfan » Sun Apr 17, 2016 4:56 pm

Thank you, got the same colour wires as the flasher unit and my scimitar knowledge is more rusty than I thought :-)


Steve

What if the Hokey Cokey is what its all about

1969 SE 5 Manual O/D Rat Rod
RSSOC Jaffa cakes in a minute champion

User avatar
scimjim
RSSOC Member
Posts: 33528
Joined: Sun Oct 01, 2006 10:08 pm
Location: Gloucester
Has thanked: 107 times
Been thanked: 653 times

Re: Rat Rod (now out of the garage)

Post by scimjim » Sun Apr 17, 2016 4:58 pm

Shouldn't be any purple on the flasher relay - HRW has the only 'proper' relay on a 5.


Jim King

Current: SE5 (8Ball), TI SS1 (snotty), 1600 SS1 (G97), 1600 SS1 (C686CCR), 2.5TD SE5a (diesel 5a), 6 x random other SS1s.
Previous: SE5, 3 x SE5a, 2 x SE6a, 3 x SE6b, GTC, 2.9i GTC, 3 x 1600 SS1, 1300 SS1, Mk1 Ti Sabre, Mk1.5 CVH Sabre
Chief mechanic for: 1400 K series SS1 (Megan3), 1400 CVH EFi SS1 (Grawpy), Sabre/MX5 auto (The Flying Broomstick),
1300 SS1 (Number One) & Sarah's coupe.
CURE THE FAULT - NOT THE SYMPTOMS

User avatar
Gillsfan
Posts: 2957
Joined: Wed Aug 19, 2009 7:58 am
Location: Somerton, Somerset.
Has thanked: 6 times
Been thanked: 17 times
Contact:

Re: Rat Rod (now out of the garage)

Post by Gillsfan » Sun Apr 17, 2016 9:08 pm

You are of course right Jim. Tiz just the wiring diagram or my reading of it there is a purple wire. Next stupid question if the HRW is the only relay what is the identical looking one slightly aft of it?

Electrical gurus please expand my electrical knowledge slightly. If the fuse was blow where was the 6 volts I was getting coming from ?


Steve

What if the Hokey Cokey is what its all about

1969 SE 5 Manual O/D Rat Rod
RSSOC Jaffa cakes in a minute champion

User avatar
scimjim
RSSOC Member
Posts: 33528
Joined: Sun Oct 01, 2006 10:08 pm
Location: Gloucester
Has thanked: 107 times
Been thanked: 653 times

Re: Rat Rod (now out of the garage)

Post by scimjim » Sun Apr 17, 2016 9:47 pm

is it part of the remote regulator for the early alternator? what wire colours go to it?


Jim King

Current: SE5 (8Ball), TI SS1 (snotty), 1600 SS1 (G97), 1600 SS1 (C686CCR), 2.5TD SE5a (diesel 5a), 6 x random other SS1s.
Previous: SE5, 3 x SE5a, 2 x SE6a, 3 x SE6b, GTC, 2.9i GTC, 3 x 1600 SS1, 1300 SS1, Mk1 Ti Sabre, Mk1.5 CVH Sabre
Chief mechanic for: 1400 K series SS1 (Megan3), 1400 CVH EFi SS1 (Grawpy), Sabre/MX5 auto (The Flying Broomstick),
1300 SS1 (Number One) & Sarah's coupe.
CURE THE FAULT - NOT THE SYMPTOMS

User avatar
scimjim
RSSOC Member
Posts: 33528
Joined: Sun Oct 01, 2006 10:08 pm
Location: Gloucester
Has thanked: 107 times
Been thanked: 653 times

Re: Rat Rod (now out of the garage)

Post by scimjim » Sun Apr 17, 2016 9:50 pm

the black box by the wiper motor was part of the alternator regulator. looks like a brown wire going into the outboard relay?



Jim King

Current: SE5 (8Ball), TI SS1 (snotty), 1600 SS1 (G97), 1600 SS1 (C686CCR), 2.5TD SE5a (diesel 5a), 6 x random other SS1s.
Previous: SE5, 3 x SE5a, 2 x SE6a, 3 x SE6b, GTC, 2.9i GTC, 3 x 1600 SS1, 1300 SS1, Mk1 Ti Sabre, Mk1.5 CVH Sabre
Chief mechanic for: 1400 K series SS1 (Megan3), 1400 CVH EFi SS1 (Grawpy), Sabre/MX5 auto (The Flying Broomstick),
1300 SS1 (Number One) & Sarah's coupe.
CURE THE FAULT - NOT THE SYMPTOMS

User avatar
toomanysabres
RIP
Posts: 5388
Joined: Sun Nov 12, 2006 2:27 pm
Location: Leatherhead
Has thanked: 14 times
Been thanked: 88 times

Re: Rat Rod (now out of the garage)

Post by toomanysabres » Sun Apr 17, 2016 10:27 pm

There should be a horn relay. Look for purple/yellow and a headlamp flash relay. both have a purple on terminal C2.


Now: '62 Sabre 4, '63 Sabre Six, '65 SE4, '00 BMW E38 740i sport.
Prev: '53 ZephyrZodiac, '64 Sabra GT, '68 Elan S3SE, Mk3 Cortina 2000GXL, Mk4 Cortina 2000 Est, 3 SE6a's, 2 SE5a, SE4a Turbo, 1800Ti.
Company: Cav SRi, Cav SRi 130, Honda Concerto 1.6 (yuk)

User avatar
scimjim
RSSOC Member
Posts: 33528
Joined: Sun Oct 01, 2006 10:08 pm
Location: Gloucester
Has thanked: 107 times
Been thanked: 653 times

Re: Rat Rod (now out of the garage)

Post by scimjim » Sun Apr 17, 2016 10:57 pm

need to amend the SE5 wiring diagram on the NE noggin pages to match the V6 coupe diagram then.


Jim King

Current: SE5 (8Ball), TI SS1 (snotty), 1600 SS1 (G97), 1600 SS1 (C686CCR), 2.5TD SE5a (diesel 5a), 6 x random other SS1s.
Previous: SE5, 3 x SE5a, 2 x SE6a, 3 x SE6b, GTC, 2.9i GTC, 3 x 1600 SS1, 1300 SS1, Mk1 Ti Sabre, Mk1.5 CVH Sabre
Chief mechanic for: 1400 K series SS1 (Megan3), 1400 CVH EFi SS1 (Grawpy), Sabre/MX5 auto (The Flying Broomstick),
1300 SS1 (Number One) & Sarah's coupe.
CURE THE FAULT - NOT THE SYMPTOMS

User avatar
Gillsfan
Posts: 2957
Joined: Wed Aug 19, 2009 7:58 am
Location: Somerton, Somerset.
Has thanked: 6 times
Been thanked: 17 times
Contact:

Re: Rat Rod (now out of the garage)

Post by Gillsfan » Sun Apr 17, 2016 11:18 pm

From the depths of my memory there has been some discussion that the early 5s are wired like a coupe. I don't have the black box , I'll confirm what colour wires it had tomorrow.


Steve

What if the Hokey Cokey is what its all about

1969 SE 5 Manual O/D Rat Rod
RSSOC Jaffa cakes in a minute champion
