SS1 Sprint/Hillclimber (was Batmobile, now DARK KNIGHT)

If you have a long-term project and would like to share/document progress, this is for you.

Moderators: scimjim, Lukeyboy46, Roger Pennington, philhoward, erikscimitardemon

Post Reply
User avatar
Nick_F
Posts: 185
Joined: Tue Aug 07, 2007 10:50 pm
Location: Somerset

Re: Project SS1 Sprint and Hillclimber (aka Silver Batmobile

Post by Nick_F » Sun Mar 06, 2011 9:41 pm

Very nice, too. Image?


The older I get the faster I was.

User avatar
CNHSS1
Posts: 14374
Joined: Tue Aug 22, 2006 5:13 pm
Location: Shrewsbury, Shropshire
Has thanked: 366 times
Been thanked: 305 times
Contact:

Re: Project SS1 Sprint and Hillclimber (aka Silver Batmobile

Post by CNHSS1 » Sun Mar 06, 2011 9:57 pm

Compomotive, other ones are Image. Idea is i will have slicks and wets
Purple Peril all hunky dory?


Racing is life, everything before and after, is just waiting--Steve McQueen
6 time Class Champ, 2006 & 2014 SSSC Champion

RIP Batmobile, await the Rise of Dark Knight 8)
Sabre 'Light Sabre' 360hp!!

User avatar
nickkeyser
RSSOC Member
Posts: 2888
Joined: Thu Aug 28, 2008 2:58 pm
Has thanked: 31 times
Been thanked: 47 times

Re: Project SS1 Sprint and Hillclimber (aka Silver Batmobile

Post by nickkeyser » Mon Mar 07, 2011 1:16 pm

New wheels looks great!

They the same width as the old ones?



User avatar
CNHSS1
Posts: 14374
Joined: Tue Aug 22, 2006 5:13 pm
Location: Shrewsbury, Shropshire
Has thanked: 366 times
Been thanked: 305 times
Contact:

Re: Project SS1 Sprint and Hillclimber (aka Silver Batmobile

Post by CNHSS1 » Mon Mar 07, 2011 8:58 pm

those are the rears, 11.25" with 6" dish, for 10"-10.5" rubber 8)


Racing is life, everything before and after, is just waiting--Steve McQueen
6 time Class Champ, 2006 & 2014 SSSC Champion

RIP Batmobile, await the Rise of Dark Knight 8)
Sabre 'Light Sabre' 360hp!!

User avatar
Nick_F
Posts: 185
Joined: Tue Aug 07, 2007 10:50 pm
Location: Somerset

Re: Project SS1 Sprint and Hillclimber (aka Silver Batmobile

Post by Nick_F » Mon Mar 07, 2011 11:42 pm

Purple Peril outside, covered in moss having not turned a wheel since November.

Long list of ideas, but no time yet to figure out the sensible order to do things in:

Lighten doors.
Sling tank and associated chassis iron and replace with mid-mounted 10l alloy number.
Send shocks for rebuild.
Speak to Danny about sorting geometry.
Buy tyres. Or slicks. Or a full set of wheels and slicks.
Make arch extensions to accomodate new wheels.
Repair/shorten exhaust manifolds.
Move engine rearwards in chassis.
Recommission after winter outside - new pull-cables, underbonnet birthday etc.
Continue to think about affording new engine.

I do now have not only a trailer, but also a car with a towbar, however, so we've taken a step in the right direction.

Did the split rims come from a source you can share? Grateful if you would PM me if so.


The older I get the faster I was.

User avatar
CNHSS1
Posts: 14374
Joined: Tue Aug 22, 2006 5:13 pm
Location: Shrewsbury, Shropshire
Has thanked: 366 times
Been thanked: 305 times
Contact:

Re: Project SS1 Sprint and Hillclimber (aka Silver Batmobile

Post by CNHSS1 » Tue Mar 08, 2011 12:01 am

i will take a pic of my car when i remember, just a barely rolling chassisand cage on the trailer for last 12months+, looking very sorry for itself :cry:

as for the splitties, ive just picked up inners and outers for last 18 months or so, often buying wheels and splitting them apart and flogging off the sections i didnt want to get the right widths and offsets. The centres were ford 108mm PCD, with inserts made and welded in, and re-PCD'd to 100m by Ian Jemmison Engineering as 100mm centres are uber rare.

new a set of splitties is approaching a grand or 1500 for billets like my other 15" set so slowly slowly catchy monkey it had to be.

Dermot Healeys a great guy for ex race car wheels and sections.

For your car, i'll bet the offsets and clearances may be better, be worth looking at one piece Compomotive CXRs. just over 100 quid a corner isnt bad and close to splittie weights without the hassle. If i re design the wishbones and trailing arms, i may get a set myself.

Might be worth asking Alan Furness (geordie GTE sprinter with holley carb? you may have met him?) as he has a set of revoltion split rim copies that he ordered from abroad and they were very good money and shiny too :lol:
if you need his number or email let me know and i will dig them out


Racing is life, everything before and after, is just waiting--Steve McQueen
6 time Class Champ, 2006 & 2014 SSSC Champion

RIP Batmobile, await the Rise of Dark Knight 8)
Sabre 'Light Sabre' 360hp!!

User avatar
CNHSS1
Posts: 14374
Joined: Tue Aug 22, 2006 5:13 pm
Location: Shrewsbury, Shropshire
Has thanked: 366 times
Been thanked: 305 times
Contact:

Re: Project SS1 Sprint and Hillclimber (aka Silver Batmobile

Post by CNHSS1 » Sat May 28, 2011 9:58 pm

more parts collated.

An uber cool carbon 'tart' part, a manifold from Australia, a Ford V8 Falcon engine component :wink:, some new bits for the new diff and sourced some other parts to be purchased. Rear suspension is almost decided upon, designs 90% there, just a couple of pickup points and source for 2 items left. Rear discs may need changing too.
Front suspension i have 3 conflicting ideas, i have one mocked up, think ill end up mocking one more up before i commit.
Hoping to collect a spare rusty chassis to practice the surgery on before hacking up the galv chassis.

Fuel system Bosch 044 pump, swirl pot etc is all bought except fuel lines. Still need to commit to an engine and box combo, but the idea is to see what space can be made in the tunnel and that should help make that decision


Racing is life, everything before and after, is just waiting--Steve McQueen
6 time Class Champ, 2006 & 2014 SSSC Champion

RIP Batmobile, await the Rise of Dark Knight 8)
Sabre 'Light Sabre' 360hp!!

User avatar
Coupe Racing
RSSOC Member
Posts: 7350
Joined: Mon Jul 23, 2007 10:51 pm
Location: Nr Telford - Shropshire
Has thanked: 19 times
Been thanked: 94 times

Re: Project SS1 Sprint and Hillclimber (aka Silver Batmobile

Post by Coupe Racing » Sun May 29, 2011 10:36 pm

still hush hush then


Blessed are the Cheese makers

Better to be an hour early than 1 minute late

User avatar
CNHSS1
Posts: 14374
Joined: Tue Aug 22, 2006 5:13 pm
Location: Shrewsbury, Shropshire
Has thanked: 366 times
Been thanked: 305 times
Contact:

Re: Project SS1 Sprint and Hillclimber (aka Silver Batmobile

Post by CNHSS1 » Wed Jun 15, 2011 10:03 pm

not really mate, just have good direction on all other areas, engine/box combo is least important in the scheme of things.

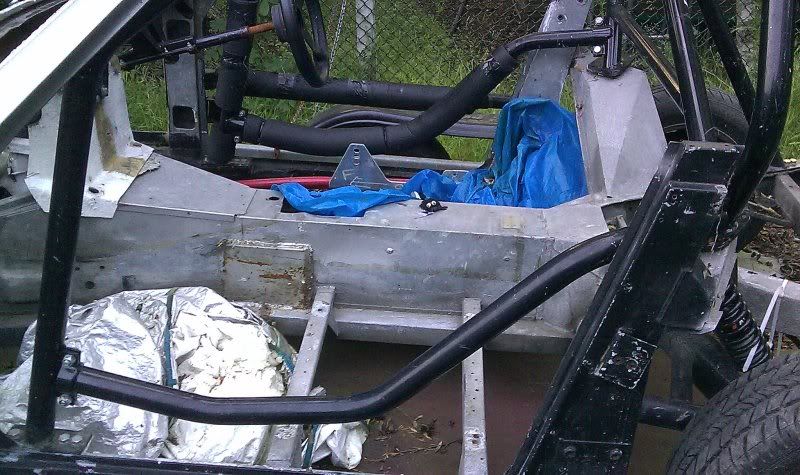

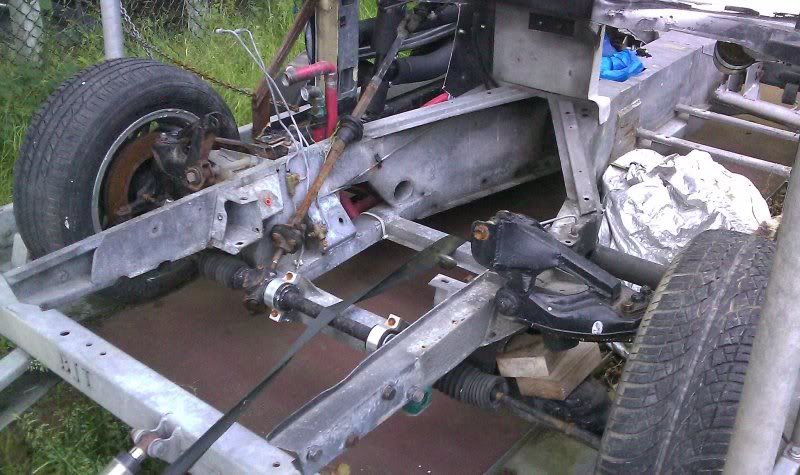

few have asked to see the car as it is....
not exactly inspiring im afraid.


picked up a spare non galv chassis (thankyou Dave 'Mr http://www.sporting-reliants.com' Poole 8) ) to use as a guinea pig for the surgery.
well beyond repair, but perfect for hacking about rather than using the galv one. All mods can be mocked up and then transferred over if they are suitable.



Racing is life, everything before and after, is just waiting--Steve McQueen
6 time Class Champ, 2006 & 2014 SSSC Champion

RIP Batmobile, await the Rise of Dark Knight 8)
Sabre 'Light Sabre' 360hp!!

User avatar
Crouchie_b
RSSOC Member
Posts: 591
Joined: Tue Aug 08, 2006 11:13 am
Location: Newton-Le-Willows, WA12
Has thanked: 16 times
Been thanked: 4 times
Contact:

Re: Project SS1 Sprint and Hillclimber (aka Silver Batmobile

Post by Crouchie_b » Wed Jun 22, 2011 9:58 pm

Think Bernie's just come up with an engine option for you?

22 Jun 2011 14:54:00
F1 - F1 Commission agrees V6 engine rules for 2014
Jun.22 (GMM) Formula one has taken another step towards overturning the scheduled 2013 engine rules.We reported on Sunday that Bernie Ecclestone summoned a meeting of the F1 Commission to take place at Heathrow airport on Wednesday.On the agenda was the formal scuttling of Jean Todt's four-cylinder regulations, because F1 chief executive Ecclestone as well as engine makers Ferrari, Mercedes and Cosworth were opposed.Ecclestone is arguing that Todt improperly introduced the four-cylinder rules without first going to the F1 Commission, and the whisper on Wednesday is that the body has now ''unanimously'' rubber-stamped an alternative.Telegraph correspondent Tom Cary revealed on Wednesday that F1 will stick with its current V8 engines through 2013 and then switch in 2014 to a new turbo 1.6 litre V6 formula.''Unconfirmed as yet,'' he clarified.The Times' Kevin Eason agreed: ''A whiff of compromise. Fascinating engine configuration though.''Cary said the new rules will be voted on via fax by the World Motor Sport Council on Monday.


Crouchie_b

User avatar
CNHSS1
Posts: 14374
Joined: Tue Aug 22, 2006 5:13 pm
Location: Shrewsbury, Shropshire
Has thanked: 366 times
Been thanked: 305 times
Contact:

Re: Project SS1 Sprint and Hillclimber (aka Silver Batmobile

Post by CNHSS1 » Fri Dec 30, 2011 10:41 pm

as it was slashing down wit rain all day so couldnt play with the TVR or SST, thought id crack on with the racer.

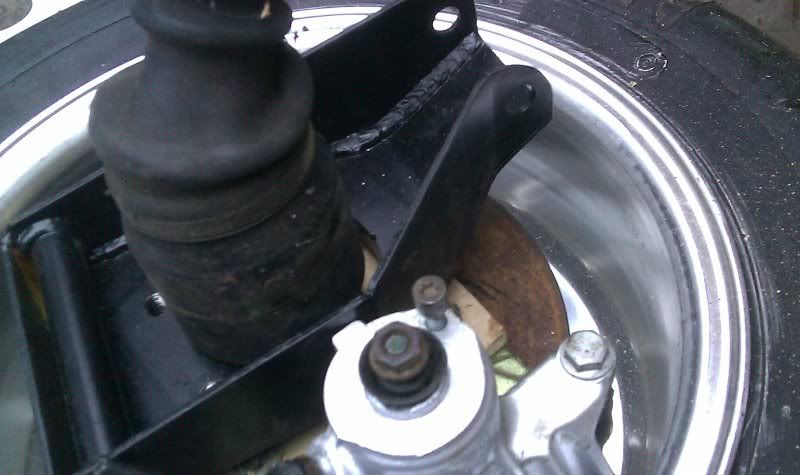

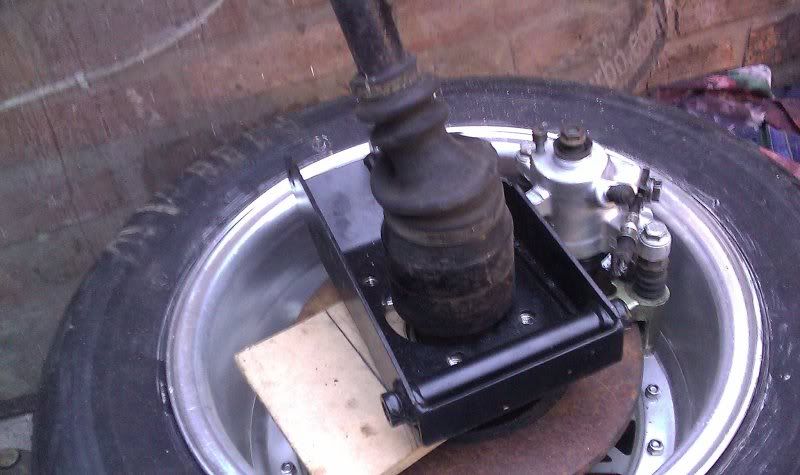

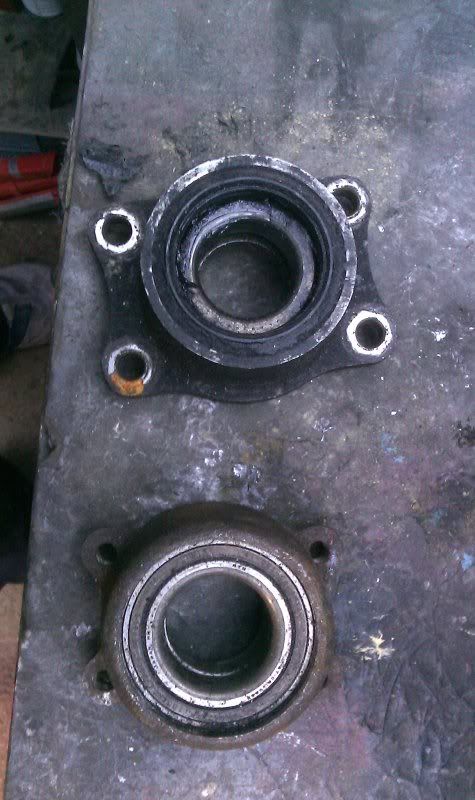

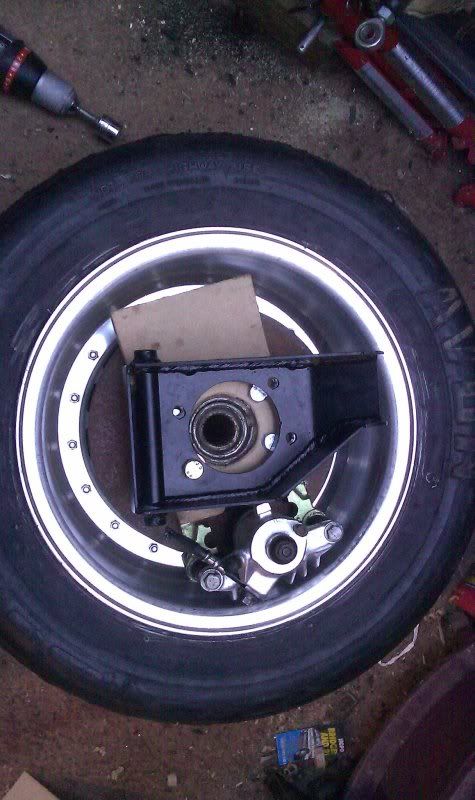

pics show Ford drum brake bearing carrier that the rear uprights are designed for, and the ss1 versions i want to use.
good old MDF to mock up the adaptor plate to mount the bearing carrier and the caliper.
Calipers will be VAG ally calipers but using the Raldes sliding caliper carrier mount as the offsets better for my needs


not a lot of caliper to wheel inner clearance either. 240mm discs and 13" wheels. In fact they wont fit with cast ally rims only spun ally split rims



Racing is life, everything before and after, is just waiting--Steve McQueen
6 time Class Champ, 2006 & 2014 SSSC Champion

RIP Batmobile, await the Rise of Dark Knight 8)
Sabre 'Light Sabre' 360hp!!

User avatar
nickkeyser
RSSOC Member
Posts: 2888
Joined: Thu Aug 28, 2008 2:58 pm
Has thanked: 31 times
Been thanked: 47 times

Re: Project SS1 Sprint and Hillclimber (aka Silver Batmobile

Post by nickkeyser » Sat Dec 31, 2011 9:08 am

oooooo! I see you new wheels have rubber bands on them too.

You have PM.



User avatar
CNHSS1
Posts: 14374
Joined: Tue Aug 22, 2006 5:13 pm
Location: Shrewsbury, Shropshire
Has thanked: 366 times
Been thanked: 305 times
Contact:

Re: Project SS1 Sprint and Hillclimber (aka Silver Batmobile

Post by CNHSS1 » Sat Dec 31, 2011 10:41 am

second hand ones for use during the build, will be replaced when the car is finised (dont hold your breath! lol)

10" wide Avons on 11" rear rims

a while ago you said youd sent me an email which i hadnt got, send any to my webmail ss1turbo address as work address filters too strong :roll:

hope you and yours had a good xmas mate :)


Racing is life, everything before and after, is just waiting--Steve McQueen
6 time Class Champ, 2006 & 2014 SSSC Champion

RIP Batmobile, await the Rise of Dark Knight 8)
Sabre 'Light Sabre' 360hp!!

User avatar
CNHSS1
Posts: 14374
Joined: Tue Aug 22, 2006 5:13 pm
Location: Shrewsbury, Shropshire
Has thanked: 366 times
Been thanked: 305 times
Contact:

Re: Project SS1 Sprint and Hillclimber (aka Silver Batmobile

Post by CNHSS1 » Sun Mar 18, 2012 8:31 pm

OK, this is an odd post, but ive decided to put the remains of Batmobile up for sale :cry:
Ive been collating parts for last 2 years, ie 3 diffs, 4 gearboxes, lots of other goodies.
Ive come to the conclusion that it will take me 18months to 2 years to rebuild once i have the decks cleared of the SST and the resto of my TVR, and at current pace of 'car work' that equates to 3 or 4 years time :( . We have been planning to put our house up for sale towards the end of this year with the plan to build a house with the proceeds (OK, if i have my way large garage with a house attached ;-)
Ive decided to put the parts up for sale. If they sell, and i hope they do, then great, the funds will go towards the house build, and if they dont they will get mothballed for 5 years. Our firm is massively busy at the moment, so im putting in long hours too, hopefully in a few years i can afford to pay Iain Daniels to build my car!
I do intend on keeping a few bits, in case i buy a car thats already built when i do have time to compete.

Ive also considered that in 1-2 years i may have the time to compete and the money spare, so would look at a dual drive situation or half share in a car etc, but what i definitely dont have is the 18months to build the Batmobile :cry: .

i will put a For Sale ad up in a bit and ad bits as i find them


Racing is life, everything before and after, is just waiting--Steve McQueen
6 time Class Champ, 2006 & 2014 SSSC Champion

RIP Batmobile, await the Rise of Dark Knight 8)
Sabre 'Light Sabre' 360hp!!

User avatar
scimjim
RSSOC Member
Posts: 38042
Joined: Sun Oct 01, 2006 10:08 pm
Location: Gloucester
Has thanked: 140 times
Been thanked: 995 times

Re: Project SS1 Sprint and Hillclimber (aka Silver Batmobile

Post by scimjim » Sun Mar 18, 2012 8:34 pm

a sad day Craig :-(

good luck with the house (multiple garages with dwelling attached) and hope to see you double driving a GTE :-)


Jim King

SECURE DRY STORAGE FOR YOUR SCIMITAR

Current: SE5 (8Ball), TI SS1 (snotty), 1600 SS1 (G97), 1600 SS1 (C686CCR), 2.5TD SE5a (diesel 5a), 6 x random other SS1s.
Previous: SE5, 3 x SE5a, 2 x SE6a, 3 x SE6b, GTC, 2.9i GTC, 3 x 1600 SS1, 1300 SS1, Mk1 Ti Sabre, Mk1.5 CVH Sabre
Chief mechanic for: 1400 K series SS1 (Megan3), 1400 CVH EFi SS1 (Grawpy), 1300 SS1 (Number One) & Sarah's coupe.
CURE THE FAULT - NOT THE SYMPTOMS
