What size nuts

Post by roymck » Tue Nov 22, 2016 3:15 pm

I am away from the car for a bit and want to order some nylocs, what size is the top inner wishbone nuts to replace the castellated nuts I have there, want to have them ready when I rebush.
Also the what nut size do I need for the 4 bolts that hold the trailing arms onto the rear axle.

I don't think there is a thread that has all nut and bolt sizes for the SE5,s .

Thanks Roy



User avatar
guybetts
RSSOC Member
Posts: 381
Joined: Wed Aug 05, 2009 1:04 pm
Location: Berkshire
Has thanked: 31 times
Been thanked: 9 times

Re: What size nuts

Post by guybetts » Tue Nov 22, 2016 5:53 pm

Don't use nylons for the upper fulcrum/wishbone. Not enough thread to lock - that is why it is a slotted nut for a split pin. IIRC they are 11/16th unf. Readily available. I got a few from Namrick in the past - just used the last ones on the GTC last weekend.


GTC Registrar

1966 Straight Six Coupe, 1981 GTC
Previous: SS1 1300 (C230 EPP) & 18ti (D993 WRX)

User avatar
Roger Pennington
RSSOC Member
Posts: 20116
Joined: Tue Aug 29, 2006 9:43 pm
Has thanked: 155 times
Been thanked: 533 times

Re: What size nuts

Post by Roger Pennington » Tue Nov 22, 2016 6:00 pm

I think it's actually 7/16 UNF?

I tend to agree about the length, it doesn't look very long to me?


....Roger

RSSOC member (since 1982)
- - - - - - - - - - - - - - - - -

"Condition can be bought at any time; Originality, once lost, is gone forever" - Doug Nye

justfur
RSSOC Member
Posts: 122
Joined: Thu Aug 18, 2016 7:42 pm
Location: Limerick Ireland
Has thanked: 4 times
Been thanked: 1 time

Re: What size nuts

Post by justfur » Tue Nov 22, 2016 6:03 pm

7/16 slotted unf, only looking at them 1/2 an hour ago and have some on order from Namrick, well it is on my 6 anyway.


Justin.

1976 SE6 no.49 See more here: https://www.flickr.com/photos/147918531 ... 463353942/

1963 CV8 Mk1 no.10
1967 TR4A

User avatar
toomanysabres
RIP
Posts: 5373
Joined: Sun Nov 12, 2006 1:27 pm
Location: Leatherhead
Has thanked: 14 times
Been thanked: 88 times

Re: What size nuts

Post by toomanysabres » Tue Nov 22, 2016 7:18 pm

Trailing arms are 5/8 UNF and I think there is enough thread for nyloks there.


Now: '62 Sabre 4, '63 Sabre Six, '65 SE4, '00 BMW E38 740i sport.
Prev: '53 ZephyrZodiac, '64 Sabra GT, '68 Elan S3SE, Mk3 Cortina 2000GXL, Mk4 Cortina 2000 Est, 3 SE6a's, 2 SE5a, SE4a Turbo, 1800Ti.
Company: Cav SRi, Cav SRi 130, Honda Concerto 1.6 (yuk)

User avatar
Roger Pennington
RSSOC Member
Posts: 20116
Joined: Tue Aug 29, 2006 9:43 pm
Has thanked: 155 times
Been thanked: 533 times

Re: What size nuts

Post by Roger Pennington » Tue Nov 22, 2016 9:18 pm

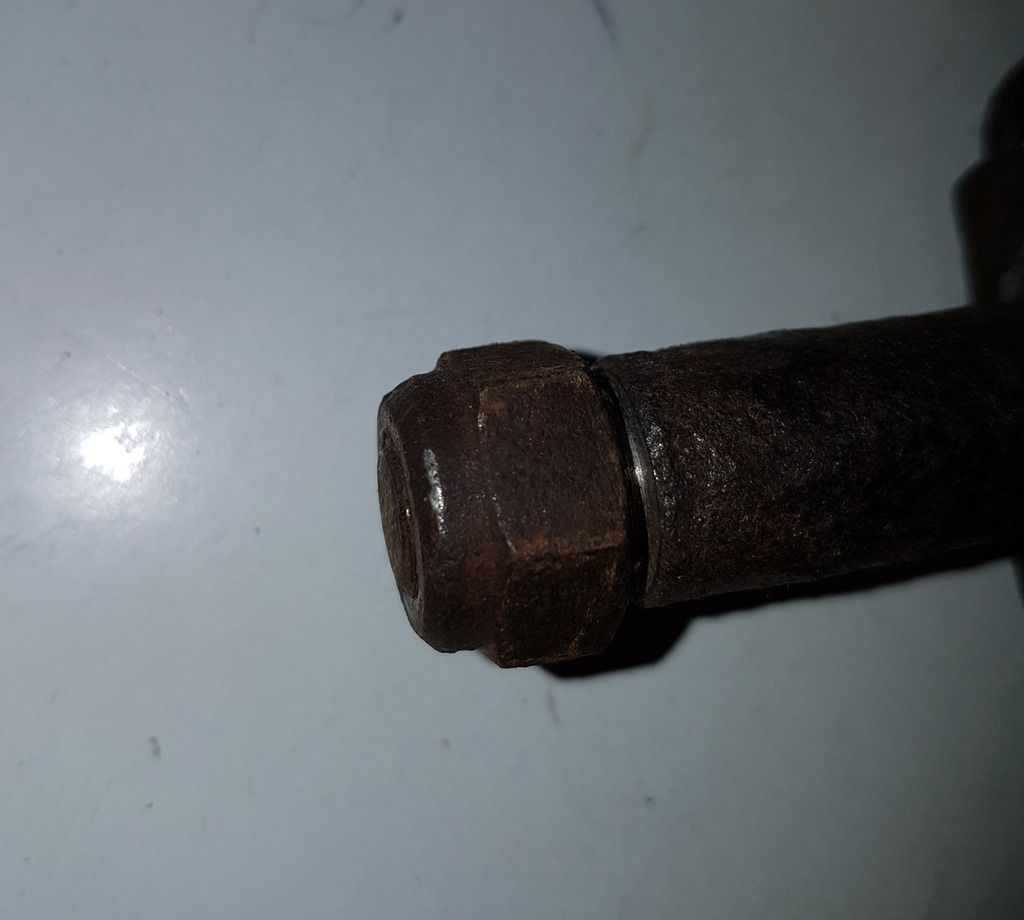

To illustrate the point, here's a nut screwed as far as it will go onto the fulcrum. note: the gap behind the nut is unthreaded, for a washer.



....Roger

RSSOC member (since 1982)
- - - - - - - - - - - - - - - - -

"Condition can be bought at any time; Originality, once lost, is gone forever" - Doug Nye

roymck
RSSOC Member
Posts: 1109
Joined: Tue Mar 24, 2009 11:33 am
Location: Dorking Surrey
Has thanked: 15 times
Been thanked: 24 times

Re: What size nuts

Post by roymck » Tue Nov 22, 2016 9:30 pm

In the Moss TR6 catalogue they offer a nyloc for the top fulcrum, thinner nut? I wonder



User avatar
philhoward
RSSOC Member
Posts: 25260
Joined: Tue Aug 29, 2006 5:41 pm
Location: Staffs, UK
Has thanked: 64 times
Been thanked: 632 times
Contact:

Re: What size nuts

Post by philhoward » Tue Nov 22, 2016 9:31 pm

Probably a "half nut"?


Phil Howard
Scimitarweb Forum Admin
SS1 1600 Rooster Turbo; Sabre Mk1.5, Sabre Mk2
Previous: SE5/5a/SS1 No.1/SS1 Rooster/SS1 1800Ti/SE5a 24 Valve
http://www.ss1turbo.com
Never try and argue with an idiot. They drag you down to their level, then beat you based on experience.

rebel alliance
Posts: 894
Joined: Thu Mar 03, 2016 9:20 pm
Has thanked: 10 times
Been thanked: 60 times

Re: What size nuts

Post by rebel alliance » Tue Nov 22, 2016 9:36 pm

I think a split pin is a safe bet and i really can not see why a nyloc is an improvement ?
