Chassis Dimensions (All Models)

Have you documented a Scimitar related procedure and would like to share it with others? Pictures are most welcome!
Threads here also contain previous “stickies” from other sections, as a central location for quick reference information.

Moderators: scimjim, philhoward, erikscimitardemon, Roger Pennington, Lukeyboy46

Post Reply
User avatar
scimjim
RSSOC Member
Posts: 35653
Joined: Sun Oct 01, 2006 10:08 pm
Location: Gloucester
Has thanked: 113 times
Been thanked: 813 times

Chassis Dimensions (All Models)

Post by scimjim » Tue May 31, 2016 8:52 pm

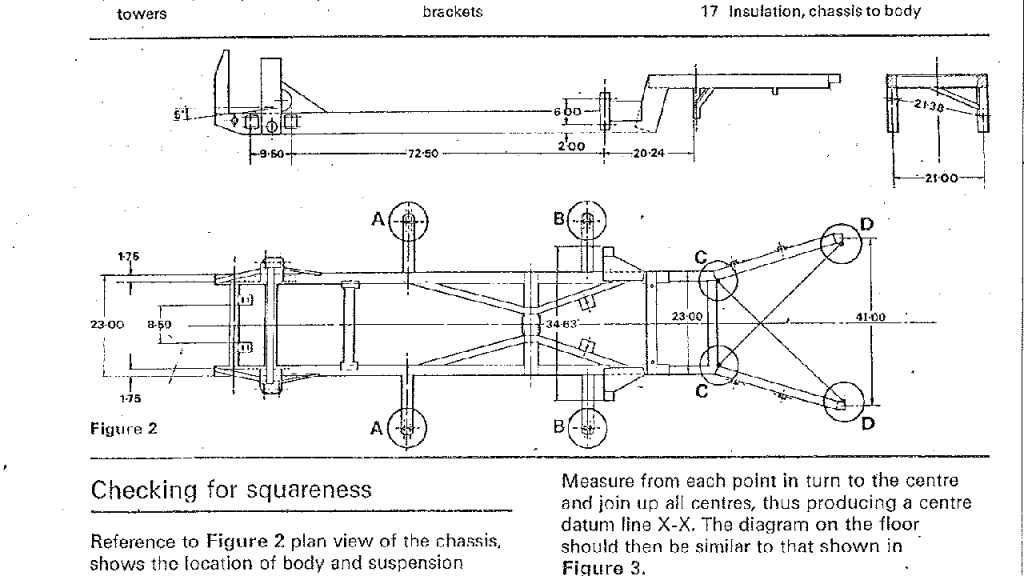

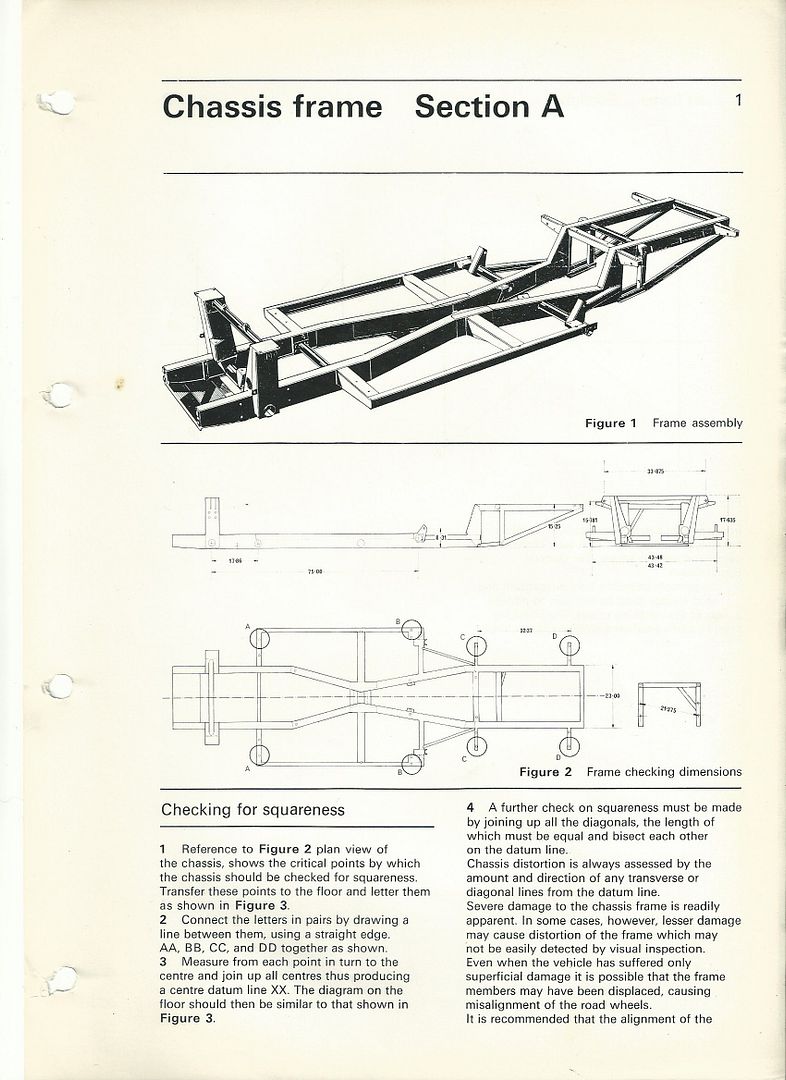

5 series

Last edited by scimjim on Tue May 31, 2016 10:39 pm, edited 1 time in total.


Jim King

Current: SE5 (8Ball), TI SS1 (snotty), 1600 SS1 (G97), 1600 SS1 (C686CCR), 2.5TD SE5a (diesel 5a), 6 x random other SS1s.
Previous: SE5, 3 x SE5a, 2 x SE6a, 3 x SE6b, GTC, 2.9i GTC, 3 x 1600 SS1, 1300 SS1, Mk1 Ti Sabre, Mk1.5 CVH Sabre
Chief mechanic for: 1400 K series SS1 (Megan3), 1400 CVH EFi SS1 (Grawpy), Sabre/MX5 auto (The Flying Broomstick),
1300 SS1 (Number One) & Sarah's coupe.
CURE THE FAULT - NOT THE SYMPTOMS

User avatar
scimjim
RSSOC Member
Posts: 35653
Joined: Sun Oct 01, 2006 10:08 pm
Location: Gloucester
Has thanked: 113 times
Been thanked: 813 times

Re: Measurements

Post by scimjim » Tue May 31, 2016 9:57 pm

SE6


V6 coupe (courtesy of Josh Oakes)


one day I'll measure up that spare SS1 chassis too :-)
Last edited by scimjim on Tue May 31, 2016 10:39 pm, edited 1 time in total.


Jim King

Current: SE5 (8Ball), TI SS1 (snotty), 1600 SS1 (G97), 1600 SS1 (C686CCR), 2.5TD SE5a (diesel 5a), 6 x random other SS1s.
Previous: SE5, 3 x SE5a, 2 x SE6a, 3 x SE6b, GTC, 2.9i GTC, 3 x 1600 SS1, 1300 SS1, Mk1 Ti Sabre, Mk1.5 CVH Sabre
Chief mechanic for: 1400 K series SS1 (Megan3), 1400 CVH EFi SS1 (Grawpy), Sabre/MX5 auto (The Flying Broomstick),
1300 SS1 (Number One) & Sarah's coupe.
CURE THE FAULT - NOT THE SYMPTOMS

User avatar
philhoward
RSSOC Member
Posts: 24014
Joined: Tue Aug 29, 2006 5:41 pm
Location: Staffs, UK
Has thanked: 41 times
Been thanked: 525 times
Contact:

Re: Measurements

Post by philhoward » Tue May 31, 2016 10:13 pm

I think there's some good measurements in the Sabre Type approval docs?

I'd copy and sticky but on my phone and have to be up at 0430...Roger?


Phil Howard
Scimitarweb Forum Admin
SS1 1600 Rooster Turbo; Sabre Mk1.5, Sabre Mk2
Previous: SE5/5a/SS1 No.1/SS1 Rooster/SS1 1800Ti/SE5a 24 Valve
http://www.ss1turbo.com
Never try and argue with an idiot. They drag you down to their level, then beat you based on experience.

User avatar
Roger Pennington
RSSOC Member
Posts: 19257
Joined: Tue Aug 29, 2006 9:43 pm
Has thanked: 112 times
Been thanked: 447 times

Re: Chassis Dimensions (All Models)

Post by Roger Pennington » Tue May 31, 2016 10:34 pm

Right, I've now created a sticky, to simply contain the chassis dimension drawings for posterity. :)


....Roger

RSSOC member (since 1982)
- - - - - - - - - - - - - - - - -

"Condition can be bought at any time; Originality, once lost, is gone forever" - Doug Nye

User avatar
scimjim
RSSOC Member
Posts: 35653
Joined: Sun Oct 01, 2006 10:08 pm
Location: Gloucester
Has thanked: 113 times
Been thanked: 813 times

Chassis Dimensions (All Models)

Post by scimjim » Mon Mar 05, 2018 4:02 pm

Here's some dimensions for the Sabre - SS1 chassis is identical in dimension
JACKING.pdf
(32.15 KiB) Downloaded 58 times
F-T-POS.pdf
(31.14 KiB) Downloaded 50 times
F-T-INST.pdf
(27.01 KiB) Downloaded 46 times
ATTACH_5.pdf
(27.7 KiB) Downloaded 52 times


Jim King

Current: SE5 (8Ball), TI SS1 (snotty), 1600 SS1 (G97), 1600 SS1 (C686CCR), 2.5TD SE5a (diesel 5a), 6 x random other SS1s.
Previous: SE5, 3 x SE5a, 2 x SE6a, 3 x SE6b, GTC, 2.9i GTC, 3 x 1600 SS1, 1300 SS1, Mk1 Ti Sabre, Mk1.5 CVH Sabre
Chief mechanic for: 1400 K series SS1 (Megan3), 1400 CVH EFi SS1 (Grawpy), Sabre/MX5 auto (The Flying Broomstick),
1300 SS1 (Number One) & Sarah's coupe.
CURE THE FAULT - NOT THE SYMPTOMS
