Re: Mixture screws- making no difference!

Post by Taggers » Sun May 20, 2012 9:26 am

Thanks all. Seems I'm not going to get much further until I properly understand the carb and have stripped it down and cleaned everything through. I notice that FRCs rebuild kit includes both the mixture screws and the power valve, so for £20 I reckon that's worth a go.

Does anyone know if the big-headed mixture screws will fit the tamperproof carb, or (as I suspect) I will have to file down the housing either side to accommodate them?

Finally, there is a peculiarity that must be relevant. The Idle jet housing on the driver's side is 1/2 turn out. Screw it fully home and the engine stops, 1/4 turn out and it runs fine. This is a clue, but to what, I don't know.

Cheers all

Chris

EDIT: I see both sorts of screws are included- result!


1979 SE6A

User avatar
Gillsfan
Posts: 3018
Joined: Wed Aug 19, 2009 7:58 am
Location: Somerton, Somerset.
Has thanked: 7 times
Been thanked: 18 times

Re: Mixture screws- making no difference!

Post by Gillsfan » Sun May 20, 2012 11:58 am

The idle jet holders should be screwed all the way in. The FRC kits don't come with power valves, the kit is about £24 including postage and the power valve about £20.


Steve

What if the Hokey Cokey is what its all about

1969 SE 5 Manual O/D Rat Rod
RSSOC Jaffa cakes in a minute champion

User avatar
AJL Electronics
RSSOC Member
Posts: 7302
Joined: Fri Oct 17, 2008 8:49 pm
Location: Gloucester
Has thanked: 38 times
Been thanked: 197 times
Contact:

Re: Mixture screws- making no difference!

Post by AJL Electronics » Sun May 20, 2012 4:56 pm

That was the point I was about to make. Idle screw may be backed off, but is it closing the butterflies? Then the CORRECT start position for the mixture screws is THREE turns out, rather that the often published 1.5 turns out.


Yes, we can mend your Scimitar!
Order your Scimitar parts any hour of the day at http://www.classicmicrocars.com (member's discounts).

Fancy a holiday in Gael, France? http://www.ianrhu.com

There is no point trying to teach a pig to sing. It doesn't work and it annoys the pig.

ScimmyMike
RSSOC Member
Posts: 4835
Joined: Sun Mar 15, 2009 6:12 pm
Location: Hyde, Cheshire
Has thanked: 12 times
Been thanked: 95 times

Re: Mixture screws- making no difference!

Post by ScimmyMike » Sun May 20, 2012 8:11 pm

Gillsfan wrote:If the throttle valves aren't covering the progression holes properly then fuel will get though no matter where the idle screws are. Most of the carbs I've done have had that problem to a larger or smaller degree.
I'd second that, was the reason why the coupe was a wee bit thirsty, swapped the carb for one properly setup and economy came back (relative of course it is a Scimitar) and the idle mix screws did something.


SE4c rebuilding. SE5a similar it seems!
SAAB C900 2 door
Scimitar SE4 SE4c SE5 SE6b Austin A35

High Peak Noggin Secretary & general dogsbody

www.high peak noggin

If you can see the tree before you hit it that's understeer
if you only feel the tree as you hit it that's oversteer

User avatar
Taggers
Posts: 2993
Joined: Sun Nov 02, 2008 5:46 pm
Location: Exeter
Has thanked: 6 times
Been thanked: 4 times

Re: Mixture screws- making no difference!

Post by Taggers » Sun May 20, 2012 8:19 pm

Interesting, is that something that can be adjusted, or a manufacturing issue?


1979 SE6A

User avatar
tony.idle
RSSOC Member
Posts: 3463
Joined: Mon Jan 29, 2007 4:31 pm
Location: Kendal, Cumbria
Has thanked: 1 time
Been thanked: 55 times

Re: Mixture screws- making no difference!

Post by tony.idle » Mon May 21, 2012 12:07 am

If you look closely at a carb (that isn't attached to a car :)) you will see one or more tiny holes starting under the edge of the throttle plate & just & so on the atmospheric side of the plate. If the throttle(s) close correctly the holes will only be slightly exposed at idle. There's no adjustment as such but problems likely to cause them to feed before they should (other than physical damage) are throttle plates not centred correctly or not synchronised (both easily cured). If the idle speed and fast idle screws are backed off so that the throttle plates are fully closed you should not be able to see light through the carb.


Regards

Tony

Embrace your feminine side - RTFM

RSSOC 2332 since 1981
Past: 2x5A, GTC. Current: SST, Smart, Hymer Motorhome, Rialto, Robin, Bug, MZ Skorpion x2.

User avatar
Gillsfan
Posts: 3018
Joined: Wed Aug 19, 2009 7:58 am
Location: Somerton, Somerset.
Has thanked: 7 times
Been thanked: 18 times

Re: Mixture screws- making no difference!

Post by Gillsfan » Mon May 21, 2012 6:14 am

Idle screw and fast idle screws badly ajusted are the common cause I've found. As tony say back them off and have a look.


Steve

What if the Hokey Cokey is what its all about

1969 SE 5 Manual O/D Rat Rod
RSSOC Jaffa cakes in a minute champion

User avatar
Taggers
Posts: 2993
Joined: Sun Nov 02, 2008 5:46 pm
Location: Exeter
Has thanked: 6 times
Been thanked: 4 times

Re: Mixture screws- making no difference!

Post by Taggers » Sat Jun 09, 2012 2:59 pm

Hey guys.

Carb is off, cleaned, rebuild kit and new jets fitted. Loads of goo game out.

Looking from underneath, when the throttle plates close there are four holes. one of the holes is for the mixture screw, and is lower, so we know about that. There is a hole higher up, perhaps 0.5mm across which is obscured (not fully covered) by the plate.

Above that there are two tiny holes, these, I think, are completely covered by the plates. either the plates block them up, or they are above the plates.

Does that sound about right?

Chris.


1979 SE6A

User avatar
philhoward
RSSOC Member
Posts: 23610
Joined: Tue Aug 29, 2006 5:41 pm
Location: Staffs, UK
Has thanked: 40 times
Been thanked: 482 times
Contact:

Re: Mixture screws- making no difference!

Post by philhoward » Sat Jun 09, 2012 3:05 pm

I think thats the holes Steve (Gillsfan) keeps going on about that need to be covered up by the plates at idle (otherwise any fiddling with the mixture screws is moot)?


Phil Howard
Scimitarweb Forum Admin
SS1 1600 Rooster Turbo; Sabre Mk1.5, Sabre Mk2
Previous: SE5/5a/SS1 No.1/SS1 Rooster/SS1 1800Ti/SE5a 24 Valve
http://www.ss1turbo.com
Never try and argue with an idiot. They drag you down to their level, then beat you based on experience.

User avatar
Taggers
Posts: 2993
Joined: Sun Nov 02, 2008 5:46 pm
Location: Exeter
Has thanked: 6 times
Been thanked: 4 times

Re: Mixture screws- making no difference!

Post by Taggers » Sat Jun 09, 2012 3:21 pm

I think so too.

The larger holes (0.5mmish) are not fully covered, and so if fuel was getting through there it would negate the mixture screws. BUT, I can't see that the plates would ever fully cover them, they leave about half showing. To me that accords with what Tony is saying, but I'm not entirely clear about the finer points. To say the least.


1979 SE6A

User avatar
trubac
Posts: 629
Joined: Mon Sep 20, 2010 8:47 pm
Has thanked: 5 times

Re: Mixture screws- making no difference!

Post by trubac » Sat Jun 09, 2012 3:30 pm

if you loosen the plates mechanism, they are not covering the holes ???


----------------------------------------------------------------------------
Se5a '75 (Sold)
Jensen Healey '73
Triumph 1300 TC '68, Herald '66
Honda C90 '71
Lambretta Li '64
Lambretta LD '53

RSSOC #1767

User avatar
Taggers
Posts: 2993
Joined: Sun Nov 02, 2008 5:46 pm
Location: Exeter
Has thanked: 6 times
Been thanked: 4 times

Re: Mixture screws- making no difference!

Post by Taggers » Sat Jun 09, 2012 3:34 pm

Cheers Trubac, not sure I understand. There is the screw at the rear right of the carb, (Fast Idle screw) I've backed that right off (as the carb is in the kitchen) but I'm reluctant to mess with too much else. I cant see that it would be easy to alter the final position of the plates... not without real know-how.


1979 SE6A

User avatar
trubac
Posts: 629
Joined: Mon Sep 20, 2010 8:47 pm
Has thanked: 5 times

Re: Mixture screws- making no difference!

Post by trubac » Sat Jun 09, 2012 4:45 pm

there is the screws that syncronize the flaps, with the gear mechanism, if you unscrew them the flaps can move fully.


----------------------------------------------------------------------------
Se5a '75 (Sold)
Jensen Healey '73
Triumph 1300 TC '68, Herald '66
Honda C90 '71
Lambretta Li '64
Lambretta LD '53

RSSOC #1767

User avatar
Gillsfan
Posts: 3018
Joined: Wed Aug 19, 2009 7:58 am
Location: Somerton, Somerset.
Has thanked: 7 times
Been thanked: 18 times

Re: Mixture screws- making no difference!

Post by Gillsfan » Sat Jun 09, 2012 5:27 pm

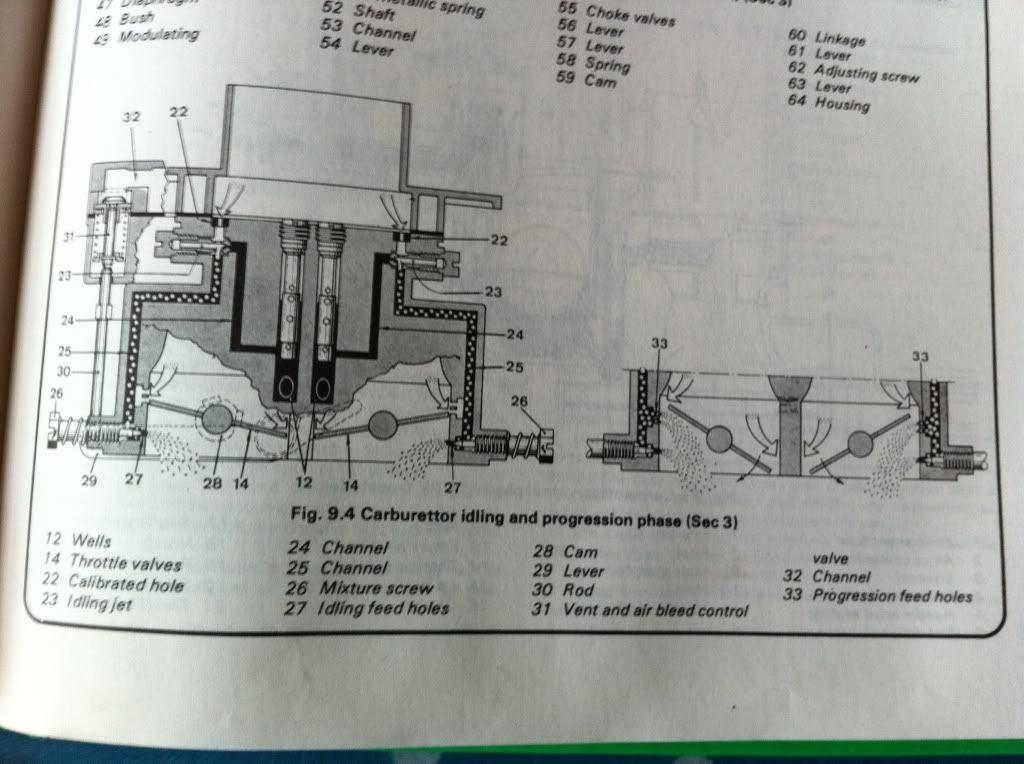

Below is a diagram which I hope will explain why I keep going on about the progression holes :-)


Left is at idle right is with light throttle

Adjusting the throttle values isn't anything to be worried about.

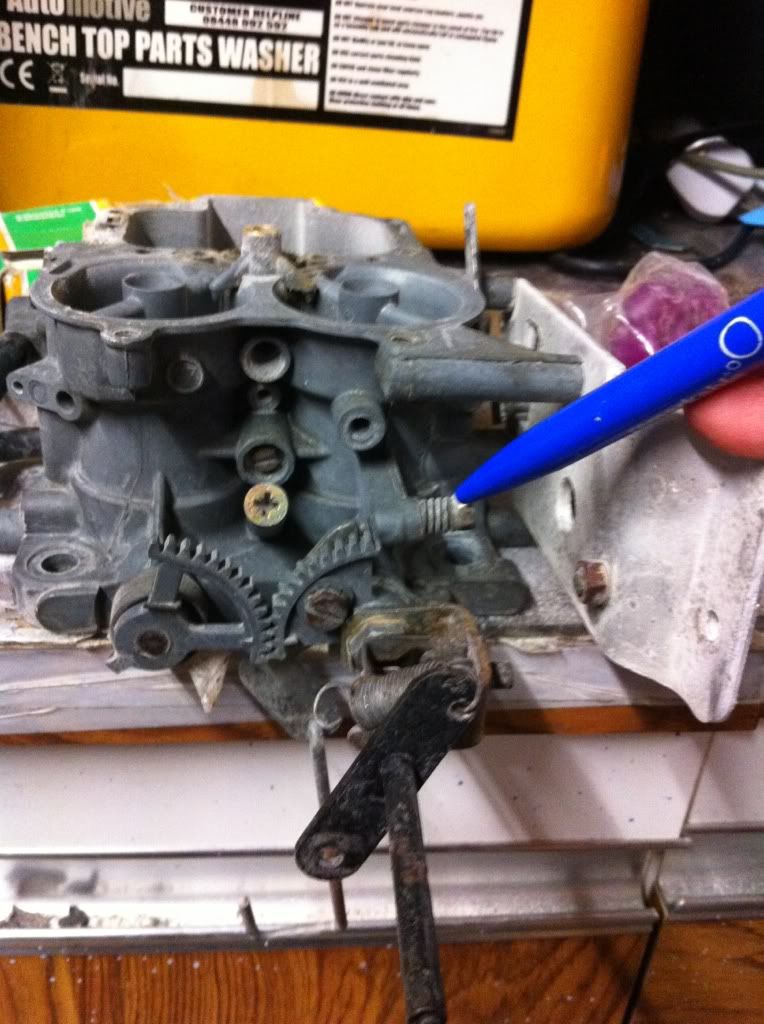

Back off this screw

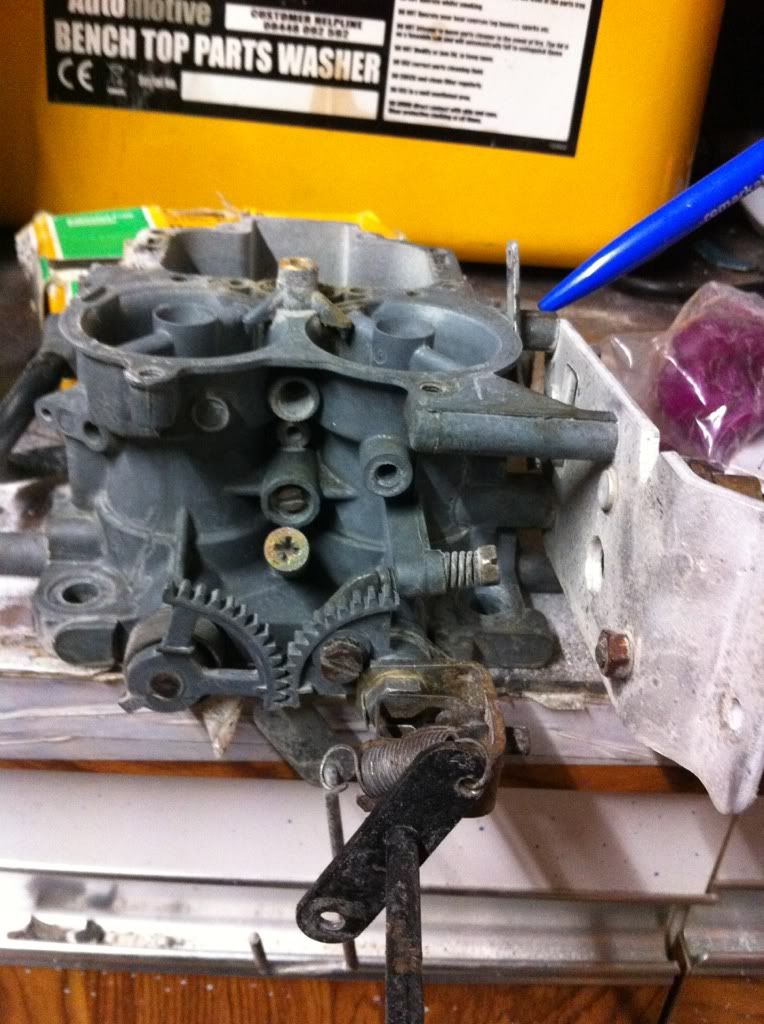

And the thd one that would be here if a had an auto choke carb to hand.

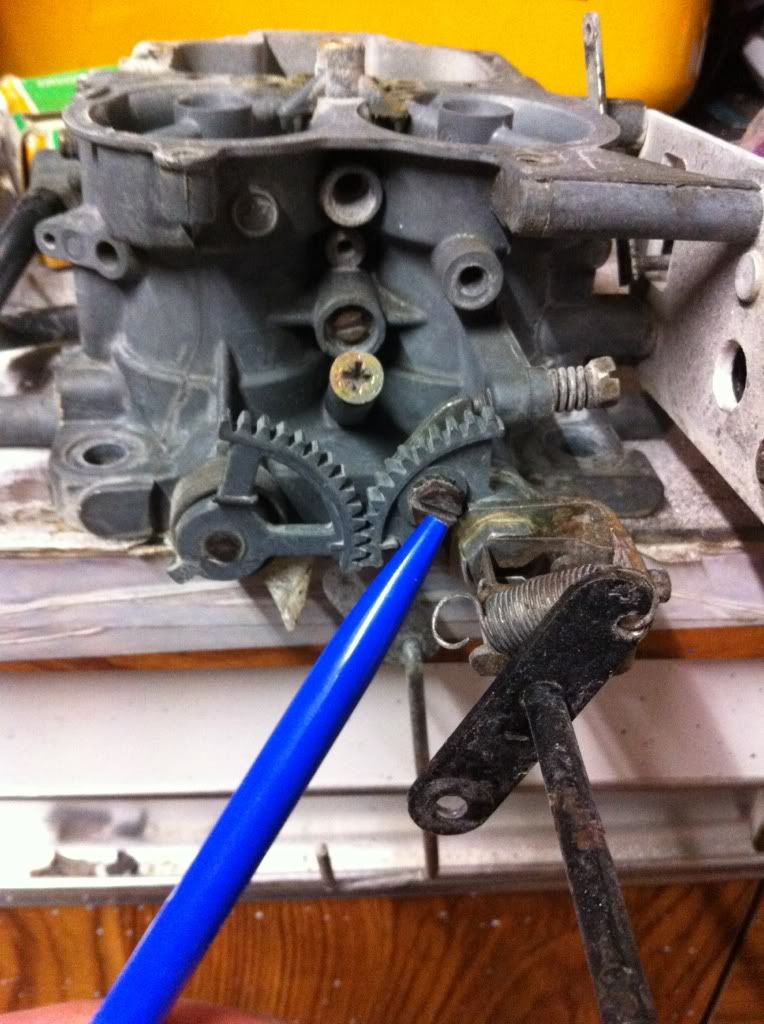

Then loosern this screw

The right hand throttle value will now move independent of the toothed segment. The left hand value should now cover the progression holes. Move the right hand one to do the same. Take out the backlash in the toothed segment and tighten the screw. Now tighten this screw


Untill it comes in to contact, adjust thd other one as required.

Hopefully at least some of that makes sence.


Steve

What if the Hokey Cokey is what its all about

1969 SE 5 Manual O/D Rat Rod
RSSOC Jaffa cakes in a minute champion

User avatar
Taggers
Posts: 2993
Joined: Sun Nov 02, 2008 5:46 pm
Location: Exeter
Has thanked: 6 times
Been thanked: 4 times

Re: Mixture screws- making no difference!

Post by Taggers » Sat Jun 09, 2012 5:55 pm

It does Steve. Wish I hadn't just put it back on the car.

It lives, anyway. It runs like a pig. But a different sort of pig. A pig with an airleak, but at least the mixture screws do *something*. Let's see how brave I am tomorrow.
