Standard Carb Jet Sizes

Post by Roger Pennington » Fri Jan 20, 2012 2:12 am

This list of standard "default" carburettor jet sizes was posted elsewhere by Jim and I think merits being copied here as a sticky, for posterity. Thanks Jim! :)
scimjim wrote:while we're on the subject and I have the manuals out, standard jets are listed as:

SE5 40 DFA-1: main jets 180, idle jet 60, idle jet air bleed 200, accelerator pump jet 50, air correction jet 185 with F2 emulsion tube
SE5/5a/SE6/6a 38DGAS 3A: main jet 145, idle jet 45, accelerator pump jet 60 (OD) / 70 (auto), air correction jet 185 with F50 emulsion tube
SE6a Tamperproof 38DGAS 3A (from auto #1415 & OD #1692): main jet 142, idle jet 45, idle air bleed dia 195, air correction jet 185.
SE6b/GTC Solex (Pierburg) 38EEIT: main jet 150, idle jet 50, idle air bleed dia 165 (OD) / 175 (auto), air correction jet 200
SS1 1300 VV: main metering rod FDK.
SS1 1600 Weber: main jets 112/125, air correction jets 160/150, idle jets 50/60, emulsion tubes F30/F30


....Roger

RSSOC member (since 1982)
- - - - - - - - - - - - - - - - -

"Condition can be bought at any time; Originality, once lost, is gone forever" - Doug Nye

User avatar
scimjim
RSSOC Member
Posts: 34298
Joined: Sun Oct 01, 2006 10:08 pm
Location: Gloucester
Has thanked: 110 times
Been thanked: 708 times

Re: Carb Jet Sizes

Post by scimjim » Fri Jan 20, 2012 11:31 am

perhaps a Sabre afficianado would like to add the S6 single & triple details?


Jim King

Current: SE5 (8Ball), TI SS1 (snotty), 1600 SS1 (G97), 1600 SS1 (C686CCR), 2.5TD SE5a (diesel 5a), 6 x random other SS1s.
Previous: SE5, 3 x SE5a, 2 x SE6a, 3 x SE6b, GTC, 2.9i GTC, 3 x 1600 SS1, 1300 SS1, Mk1 Ti Sabre, Mk1.5 CVH Sabre
Chief mechanic for: 1400 K series SS1 (Megan3), 1400 CVH EFi SS1 (Grawpy), Sabre/MX5 auto (The Flying Broomstick),
1300 SS1 (Number One) & Sarah's coupe.
CURE THE FAULT - NOT THE SYMPTOMS

User avatar
philhoward
RSSOC Member
Posts: 23360
Joined: Tue Aug 29, 2006 5:41 pm
Location: Staffs, UK
Has thanked: 37 times
Been thanked: 460 times
Contact:

Re: Carb Jet Sizes

Post by philhoward » Fri Jan 20, 2012 2:51 pm

toomanysabres wrote:Not sure if H4 and HS4 carbs need different needles but the H4's in a Sabre 4 are supposed to be GS with a Red spring.
piman wrote:the GE\R is correct for a Sabre six with triple HS4s


Phil Howard
Scimitarweb Forum Admin
SS1 1600 Rooster Turbo; Sabre Mk1.5, Sabre Mk2
Previous: SE5/5a/SS1 No.1/SS1 Rooster/SS1 1800Ti/SE5a 24 Valve
http://www.ss1turbo.com
Never try and argue with an idiot. They drag you down to their level, then beat you based on experience.

User avatar
toomanysabres
RIP
Posts: 5388
Joined: Sun Nov 12, 2006 2:27 pm
Location: Leatherhead
Has thanked: 14 times
Been thanked: 88 times

Re: Carb Jet Sizes

Post by toomanysabres » Fri Jan 20, 2012 3:04 pm

The SU's in S4 & S6 can benefit a great deal with a 1.1/2" K&N Stub Stack inside the air filter.
http://www.rimmerbros.co.uk/Item--i-RL1 ... edium=feed


Now: '62 Sabre 4, '63 Sabre Six, '65 SE4, '00 BMW E38 740i sport.
Prev: '53 ZephyrZodiac, '64 Sabra GT, '68 Elan S3SE, Mk3 Cortina 2000GXL, Mk4 Cortina 2000 Est, 3 SE6a's, 2 SE5a, SE4a Turbo, 1800Ti.
Company: Cav SRi, Cav SRi 130, Honda Concerto 1.6 (yuk)

John Cassingham
RSSOC Member
Posts: 59
Joined: Sat Dec 15, 2007 9:35 pm
Location: South Oxfordshire

Re: Carb Jet Sizes

Post by John Cassingham » Thu Aug 23, 2012 11:21 am

Would anyone know the correct jets etc for a 38 DGAS Weber, on a standard 2.8 Auto GTC?


John

User avatar
scimjim
RSSOC Member
Posts: 34298
Joined: Sun Oct 01, 2006 10:08 pm
Location: Gloucester
Has thanked: 110 times
Been thanked: 708 times

Re: Carb Jet Sizes

Post by scimjim » Thu Aug 23, 2012 12:02 pm

As far as I know, Ford only fitted the Pierburg or Weber 2V to the 2.8? Presumably Nigel at QRG would know as I think he offered the conversion at one time (as well as RR, JW, etc)?

Unless there's any definitive answers on any of the Ford forums etc, I think the 6a jets would get it running well enough to fine tune/rolling road


Jim King

Current: SE5 (8Ball), TI SS1 (snotty), 1600 SS1 (G97), 1600 SS1 (C686CCR), 2.5TD SE5a (diesel 5a), 6 x random other SS1s.
Previous: SE5, 3 x SE5a, 2 x SE6a, 3 x SE6b, GTC, 2.9i GTC, 3 x 1600 SS1, 1300 SS1, Mk1 Ti Sabre, Mk1.5 CVH Sabre
Chief mechanic for: 1400 K series SS1 (Megan3), 1400 CVH EFi SS1 (Grawpy), Sabre/MX5 auto (The Flying Broomstick),
1300 SS1 (Number One) & Sarah's coupe.
CURE THE FAULT - NOT THE SYMPTOMS

User avatar
philhoward
RSSOC Member
Posts: 23360
Joined: Tue Aug 29, 2006 5:41 pm
Location: Staffs, UK
Has thanked: 37 times
Been thanked: 460 times
Contact:

Re: Carb Jet Sizes

Post by philhoward » Thu Aug 23, 2012 12:23 pm

Apparently Fast Road Cars know - so will probably happily sell you a set, John?


Phil Howard
Scimitarweb Forum Admin
SS1 1600 Rooster Turbo; Sabre Mk1.5, Sabre Mk2
Previous: SE5/5a/SS1 No.1/SS1 Rooster/SS1 1800Ti/SE5a 24 Valve
http://www.ss1turbo.com
Never try and argue with an idiot. They drag you down to their level, then beat you based on experience.

ScimmyMike
RSSOC Member
Posts: 4789
Joined: Sun Mar 15, 2009 6:12 pm
Location: Hyde, Cheshire
Has thanked: 12 times
Been thanked: 91 times

Re: Carb Jet Sizes

Post by ScimmyMike » Thu Aug 23, 2012 1:55 pm

Yes, FRC supplied me with a dgas suitably re jetted, it's also on their website as such an item as well, great service but not the cheapest, you get what you pay for though, experience and good advice.
Just one small thing, don't use the webcon piping that comes with the carb, I did on the 6B tank and when removing to sort out the spiders noticed it had gone rock hard and not at all flexible


SE4c rebuilding. SE5a similar it seems!
SAAB C900 2 door
Scimitar SE4 SE4c SE5 SE6b Austin A35

High Peak Noggin Secretary & general dogsbody

www.high peak noggin

If you can see the tree before you hit it that's understeer
if you only feel the tree as you hit it that's oversteer

User avatar
scimjim
RSSOC Member
Posts: 34298
Joined: Sun Oct 01, 2006 10:08 pm
Location: Gloucester
Has thanked: 110 times
Been thanked: 708 times

Re: Carb Jet Sizes

Post by scimjim » Thu Aug 23, 2012 1:59 pm

any idea what jet sizes were fitted Mike?


Jim King

Current: SE5 (8Ball), TI SS1 (snotty), 1600 SS1 (G97), 1600 SS1 (C686CCR), 2.5TD SE5a (diesel 5a), 6 x random other SS1s.
Previous: SE5, 3 x SE5a, 2 x SE6a, 3 x SE6b, GTC, 2.9i GTC, 3 x 1600 SS1, 1300 SS1, Mk1 Ti Sabre, Mk1.5 CVH Sabre
Chief mechanic for: 1400 K series SS1 (Megan3), 1400 CVH EFi SS1 (Grawpy), Sabre/MX5 auto (The Flying Broomstick),
1300 SS1 (Number One) & Sarah's coupe.
CURE THE FAULT - NOT THE SYMPTOMS

User avatar
toomanysabres
RIP
Posts: 5388
Joined: Sun Nov 12, 2006 2:27 pm
Location: Leatherhead
Has thanked: 14 times
Been thanked: 88 times

Re: Carb Jet Sizes

Post by toomanysabres » Mon Dec 07, 2015 9:10 pm

philhoward wrote:
toomanysabres wrote:Not sure if H4 and HS4 carbs need different needles but the H4's in a Sabre 4 are supposed to be GS with a Red spring.
piman wrote:the GE\R is correct for a Sabre six with triple HS4s
A follow up to this was when Oselli set my Sabre 4 up on their rolling road they wanted to change the needle from GS but didn't have one to suit so the guy took them and trimmed them on a lathe.


Now: '62 Sabre 4, '63 Sabre Six, '65 SE4, '00 BMW E38 740i sport.
Prev: '53 ZephyrZodiac, '64 Sabra GT, '68 Elan S3SE, Mk3 Cortina 2000GXL, Mk4 Cortina 2000 Est, 3 SE6a's, 2 SE5a, SE4a Turbo, 1800Ti.
Company: Cav SRi, Cav SRi 130, Honda Concerto 1.6 (yuk)

User avatar
toomanysabres
RIP
Posts: 5388
Joined: Sun Nov 12, 2006 2:27 pm
Location: Leatherhead
Has thanked: 14 times
Been thanked: 88 times

Re: Carb Jet Sizes (SU types)

Post by toomanysabres » Mon Dec 07, 2015 9:32 pm

I have recently applied an overhaul kit to one of the carbs of my Sabre 4 due to the base rubber seals 'weeping' a bit.
So I wanted to share a tip that NNG came up with for centering the jet. This is quite tricky as it is only really held in position by the tiny cork rings inside since it has to slide up and down for choke action. It will not stay in position on final tightening of the big nut with a 22mm spanner. It has to be clear of the needle in all positions of the movement of the rising vacuum piston.

Here are the materials
eat or bin the contents of :-
cut out a bit of a smooth band and fashion into three precision 0.006" slip gauges like this:-

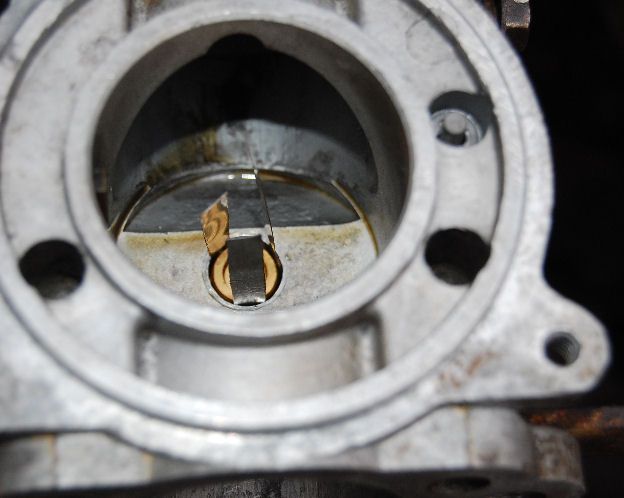

place them into these positions and finally do up the nut underneath securely.
after pulling the strips out the jet will stay in place.

Please note it works just as well with spaghetti or soup :D


Now: '62 Sabre 4, '63 Sabre Six, '65 SE4, '00 BMW E38 740i sport.
Prev: '53 ZephyrZodiac, '64 Sabra GT, '68 Elan S3SE, Mk3 Cortina 2000GXL, Mk4 Cortina 2000 Est, 3 SE6a's, 2 SE5a, SE4a Turbo, 1800Ti.
Company: Cav SRi, Cav SRi 130, Honda Concerto 1.6 (yuk)

Ollieoldbeard
Posts: 192
Joined: Fri Oct 03, 2014 8:23 am
Location: BRISTOL
Has thanked: 2 times
Been thanked: 1 time

Re: Standard Carb Jet Sizes

Post by Ollieoldbeard » Tue Dec 15, 2015 7:08 pm

Is it possible to blow out main jet with carb in situ on a 6a. ??
